Individual hose record
Excavator · Caterpillar · CAT®315F LCR · Pedal
Hose repair card
Caterpillar CAT®315F LCRPipe No. 9 · Part 292-7419
Left fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗
Right fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗
Route行走踏板~分配阀上
Tap the card to enlarge it without leaving this page.
Same system
Workshop guide
For Caterpillar CAT®315F LCR Pedal, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

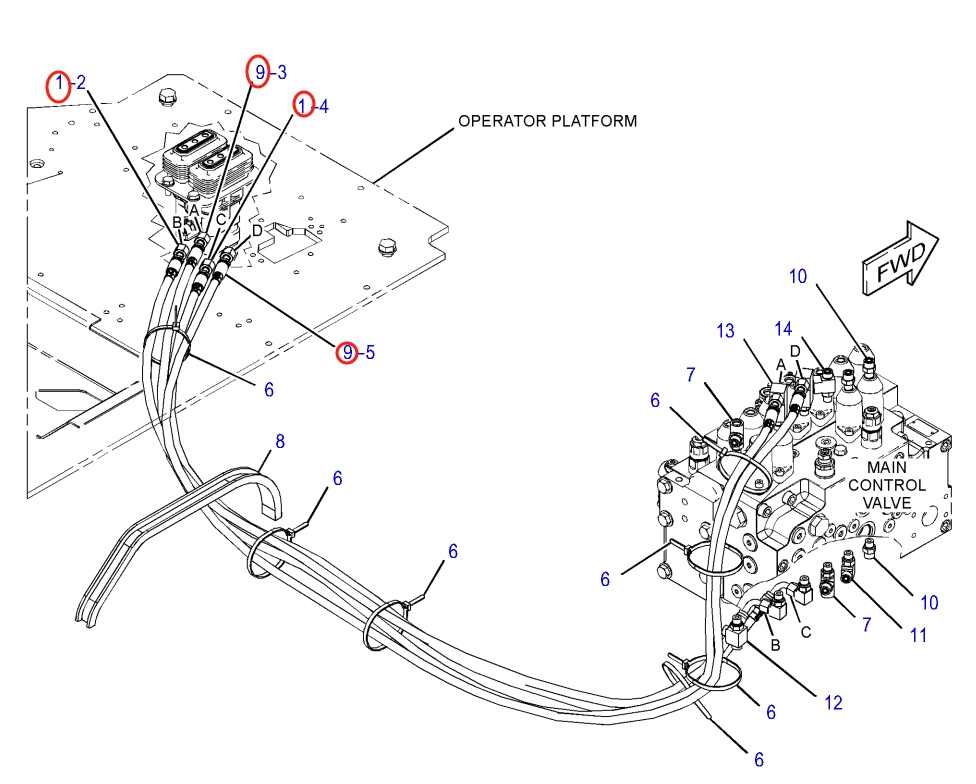

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
