Individual hose record

4I-1419 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A · Control Lever

Finished length2,360 mm

Locate this hose

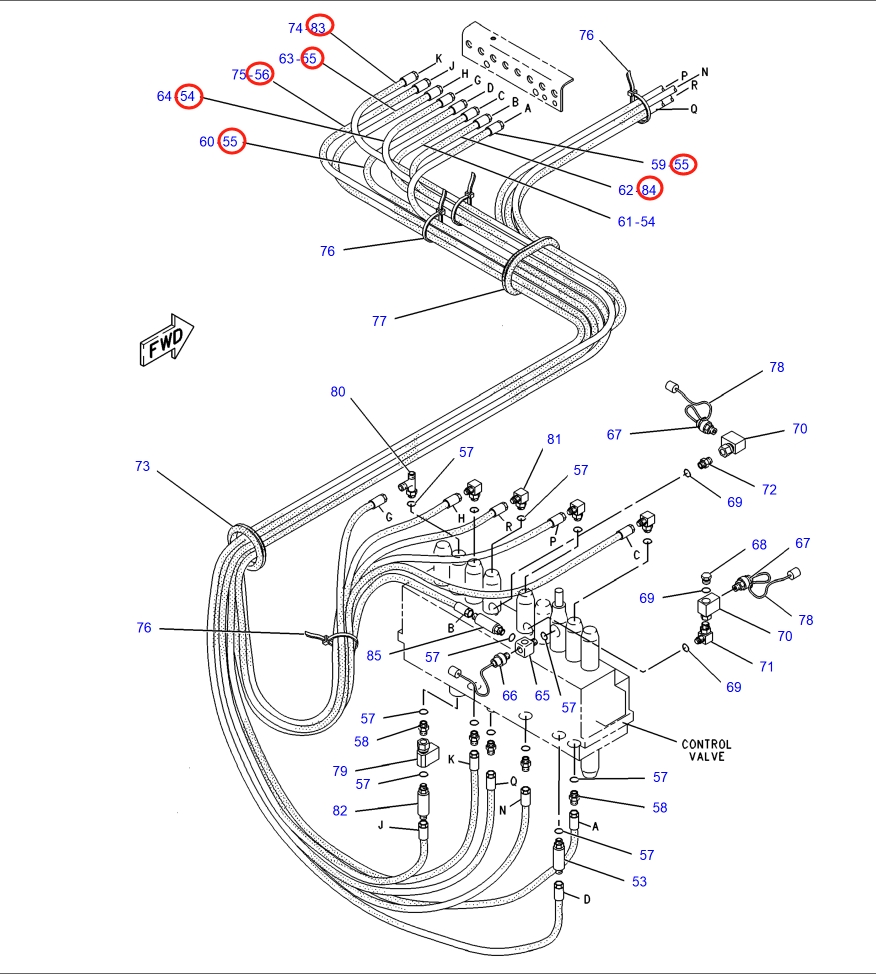

Installation diagram — Pipe No. 84

Locate Pipe No. 84 in the diagram, then confirm part number 4I-1419 before removing the hose.

Caterpillar CAT®317-A installation diagram showing hydraulic hose 4I-1419 at Pipe No. 84 — Caterpillar CAT®317-APart 4I-1419 · Pipe No. 84Open full-size diagram

Repair specifications

Part number: 4I-1419
Diagram pipe number: 84
Installation route: 中转接头~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,360 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 83

4I-6233

Installation route: 中转接头~分配阀下

Length: 2,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 55

5I-3127

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 1,900 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 54

4I-1413

Installation route: 中转接头~分配阀上

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
