102-8280 Hose Repair Specifications

Excavator · Caterpillar · CAT®318B · Attachments – Lock Valve

Finished length1,560 mm

Locate this hose

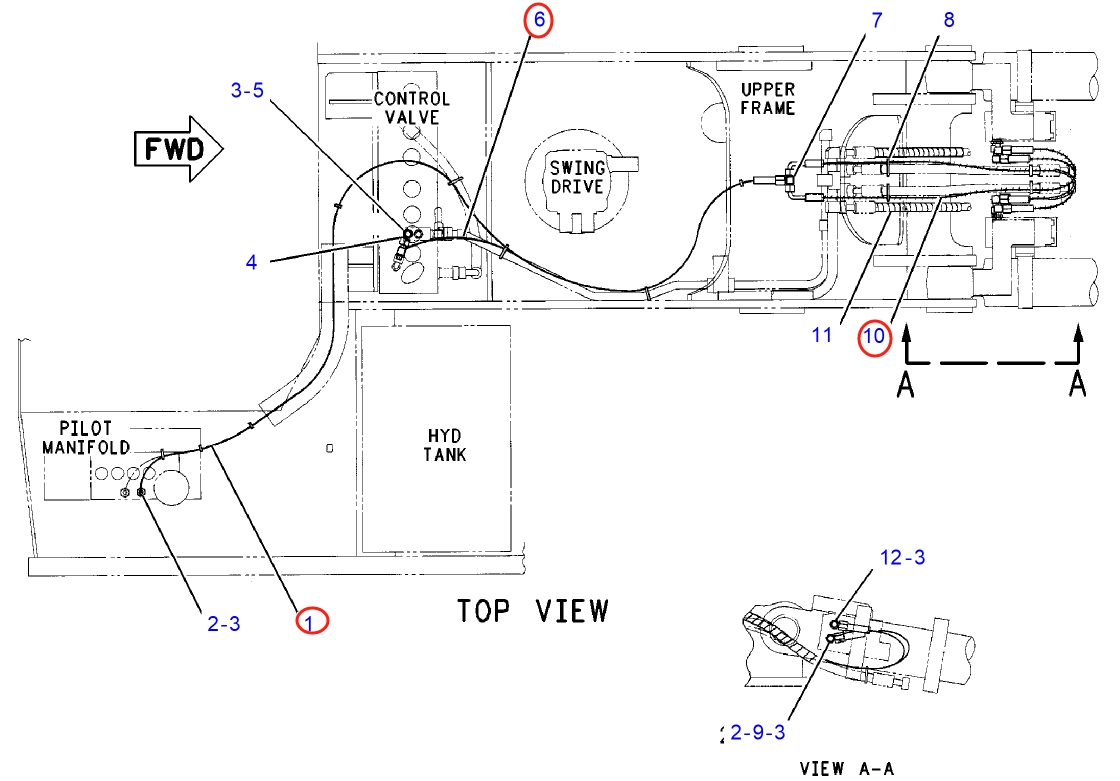

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 102-8280 before removing the hose.

Caterpillar CAT®318B installation diagram showing hydraulic hose 102-8280 at Pipe No. 6
Caterpillar CAT®318BPart 102-8280 · Pipe No. 6Open full-size diagram

Repair specifications

Part number
102-8280
Diagram pipe number
6
Installation route
过渡接头(大臂油缸锁止阀)~分配阀
Hose specification
DN10;-6;10.3Mpa
Finished length
1,560 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 13

121-6318

Installation route: 大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length
640 mm
Specification
DN16;1SN-10;10.5Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 1

4I-6242

Installation route: 过渡接头(大臂油缸锁止阀)~蓄能器电磁阀

Length
2,950 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
