Individual hose record

108-7276 Hose Repair Specifications

Excavator · Caterpillar · CAT®307 · Swivel Joint

Finished length400 mm

Locate this hose

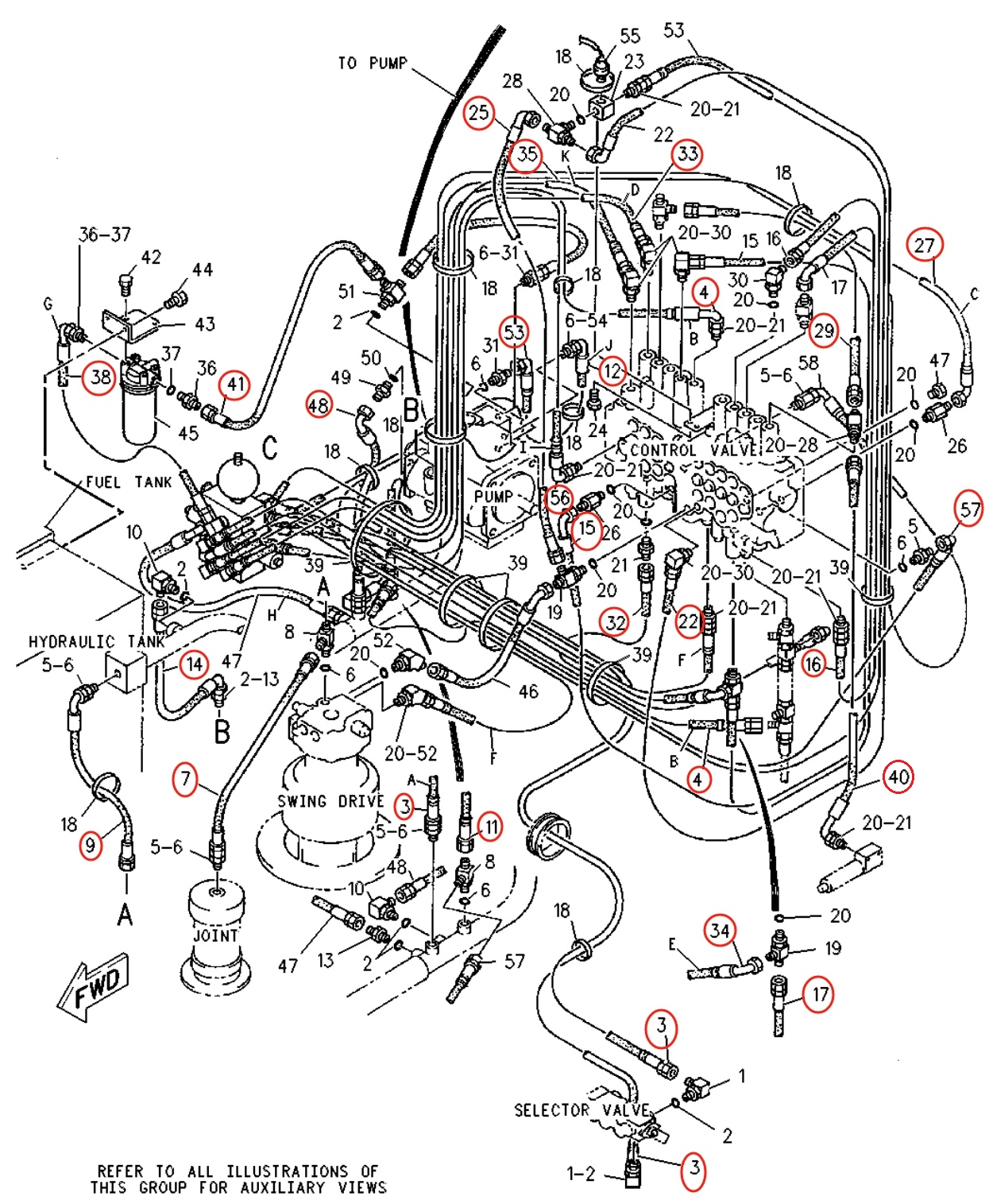

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 108-7276 before removing the hose.

Caterpillar CAT®307 installation diagram showing hydraulic hose 108-7276 at Pipe No. 7 — Caterpillar CAT®307Part 108-7276 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 108-7276
Diagram pipe number: 7
Installation route: 回转接头~回转马达(回油)
Hose specification: DN10;-6;10.3Mpa
Finished length: 400 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
