Individual hose record

221-4807 Hose Repair Specifications

Excavator · Caterpillar · CAT®314E LCR · Solenoid Valve

Finished length1,750 mm

Locate this hose

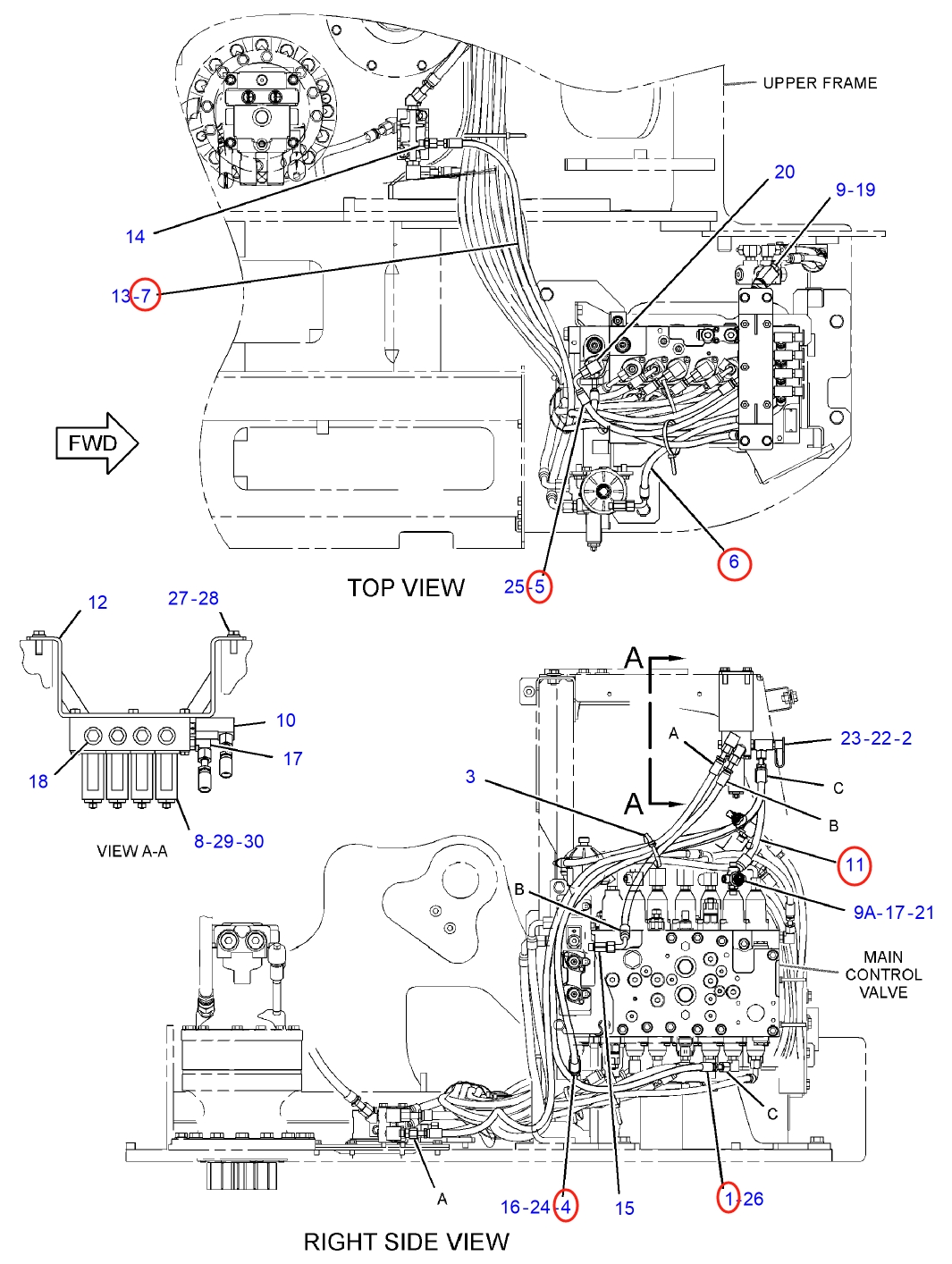

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 221-4807 before removing the hose.

Part number: 221-4807
Diagram pipe number: 7
Installation route: 蓄能器电磁阀(分配阀后右)~过渡阀块(回转接头右)
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,750 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 电磁阀(分配阀上)~

Length: 1,400 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 电磁阀(回转马达右)~控制阀(回转接头左)

Length: 610 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
