Individual hose record

179-7778 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Swivel Joint

Finished length1,900 mm

Locate this hose

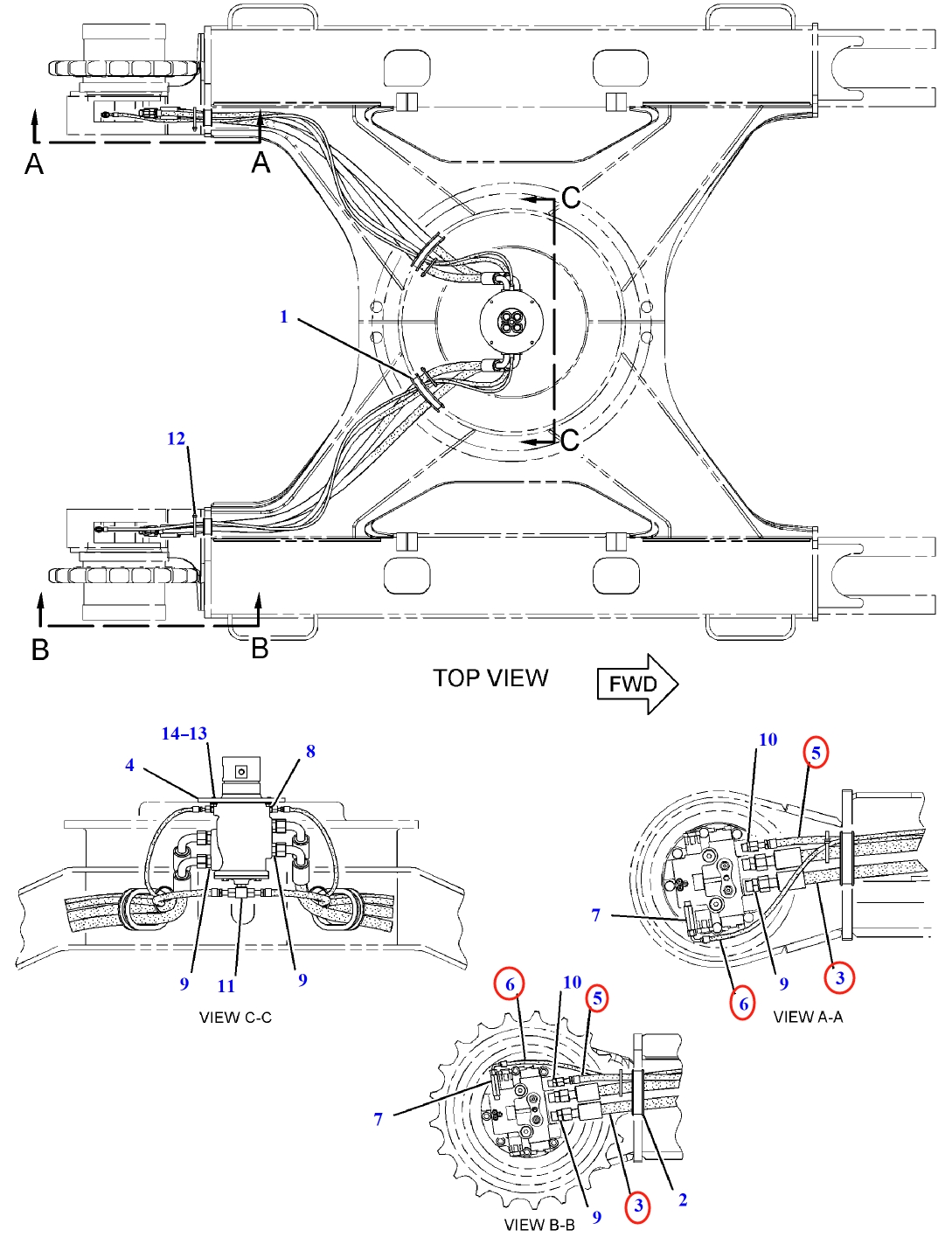

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 179-7778 before removing the hose.

Caterpillar CAT®314D LCR installation diagram showing hydraulic hose 179-7778 at Pipe No. 5 — **Caterpillar CAT®314D LCR**Part 179-7778 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 179-7778
Diagram pipe number: 5
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN13;-8;10.3Mpa
Finished length: 1,900 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Optional cross-check
