Individual hose record

277-0917 Hose Repair Specifications

Excavator · Caterpillar · CAT®318E L · Attachments – Breaker

Finished length1,900 mm

Locate this hose

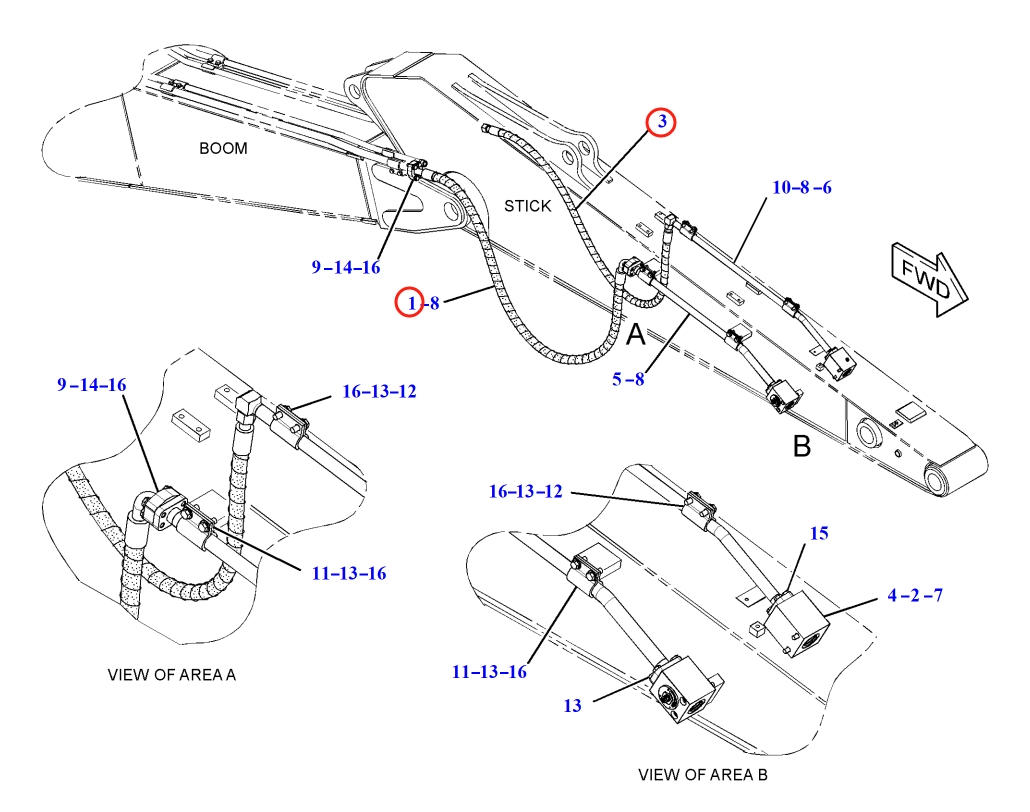

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 277-0917 before removing the hose.

Part number: 277-0917
Diagram pipe number: 3
Installation route: 小臂破碎器截止阀左
Hose specification: DN19;6SH-12;42Mpa
Finished length: 1,900 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 小臂破碎器截止阀左

Length: 1,550 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂破碎器截止阀左

Length: 1,350 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 小臂破碎器截止阀左

Length: 1,600 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
