Individual hose record

135-1097 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B L · Hydraulic Pump

Finished length850 mm

Locate this hose

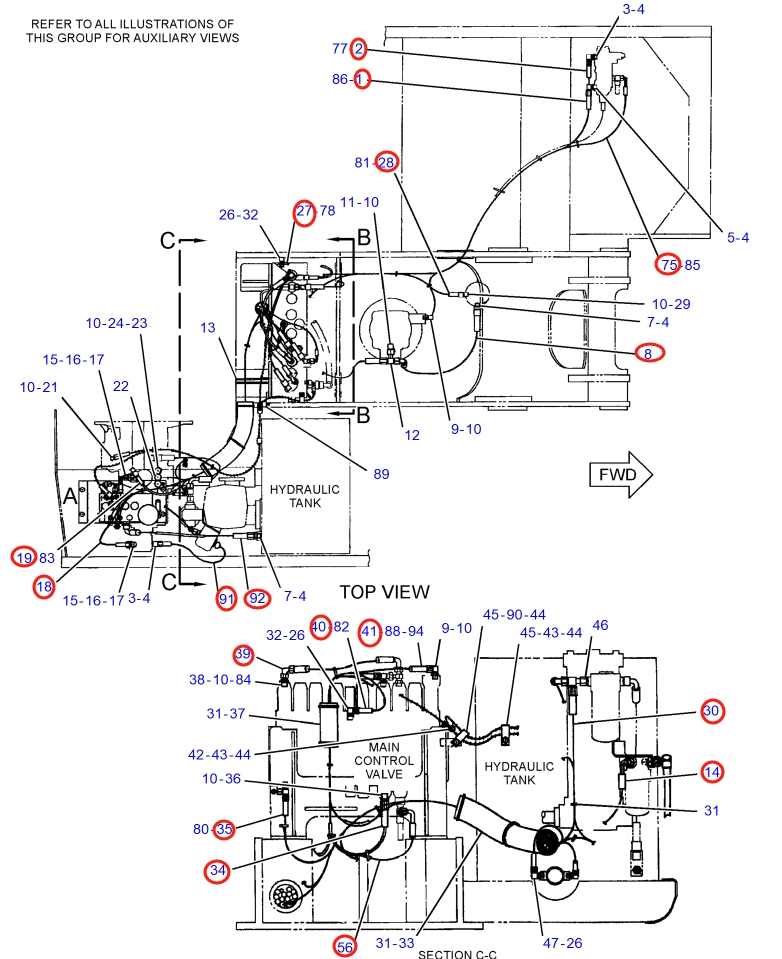

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 135-1097 before removing the hose.

Caterpillar CAT®317B L installation diagram showing hydraulic hose 135-1097 at Pipe No. 19 — Caterpillar CAT®317B LPart 135-1097 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 135-1097
Diagram pipe number: 19
Installation route: 液压泵~
Hose specification: DN6;-4;10.3Mpa
Finished length: 850 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 91

7I-0184

Installation route: 液压泵~

Length: 550 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
