Individual hose record

4I-6248 Hose Repair Specifications

Excavator · Caterpillar · CAT®318D2 · Control Valve

Finished length940 mm

Locate this hose

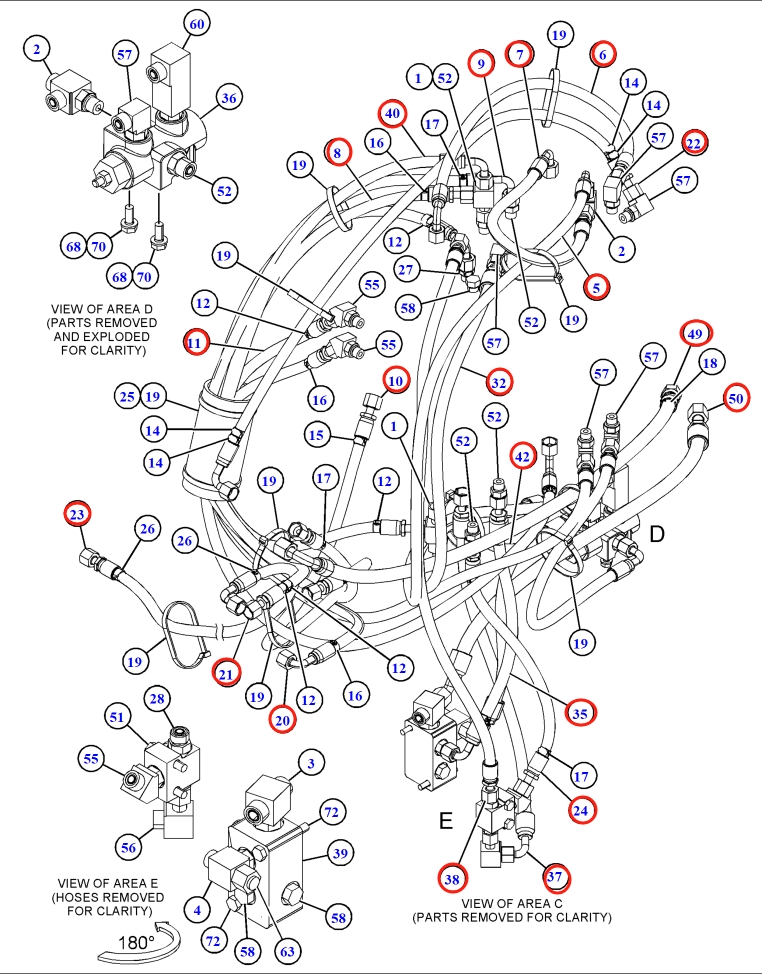

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4I-6248 before removing the hose.

Part number: 4I-6248
Diagram pipe number: 10
Installation route: 分配阀左~蓄能器电磁阀(分配阀左)
Hose specification: DN10;-6;10.3Mpa
Finished length: 940 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 分配阀上~电磁阀(分配阀左后)

Length: 1,400 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: 分配阀下~过渡接头(分配阀左后)

Length: 400 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 38

Installation route: 分配阀上~过渡接头(分配阀左后)

Length: 950 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 分配阀前~

Length: 650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
