113-6741 Hose Repair Specifications

Excavator · Caterpillar · CAT®312E · Attachments – Lock Valve

Finished length2,950 mm

Locate this hose

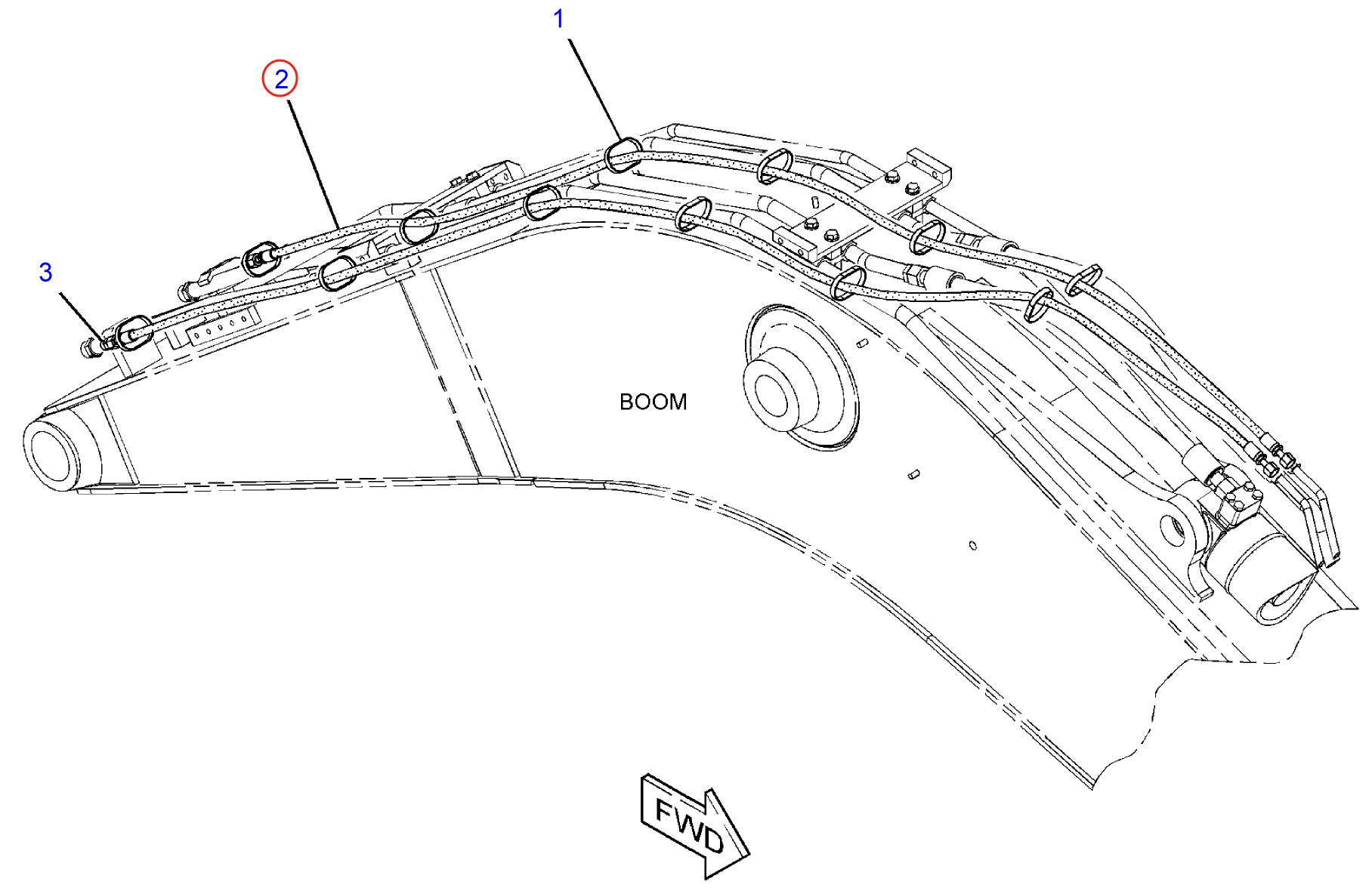

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 113-6741 before removing the hose.

Part number: 113-6741
Diagram pipe number: 2
Installation route: 小臂油缸锁止阀~大臂(后段)
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,950 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 5

Installation route: 小臂油缸锁止阀~大臂(后段)

Length: 4,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 液压油箱~铁管(大臂)

Length: 2,100 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
