Individual hose record
5I-3124 Hose Repair Specifications
Excavator · Caterpillar · CAT®315-A L · Control Valve
Finished length700 mm
Locate this hose

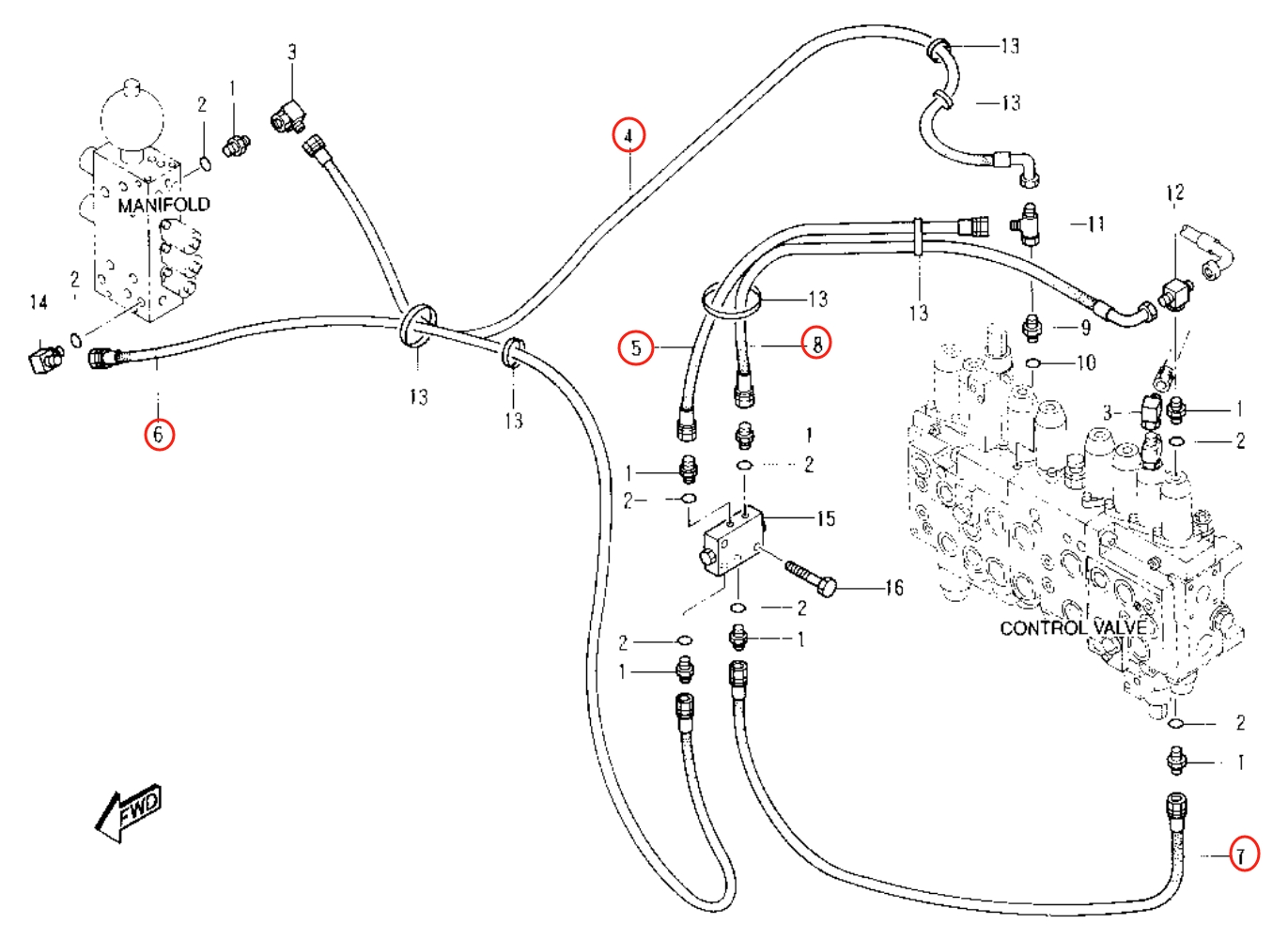

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 5I-3124 before removing the hose.
Repair specifications
- Part number
- 5I-3124
- Diagram pipe number
- 5
- Installation route
- 分配阀上~过渡阀块(分配阀前)
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 700 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
