Individual hose record

2184-1060D49 Hose Repair Specifications

Excavator · Doosan · DX55W · Grease Lines

Finished length530 mm

Locate this hose

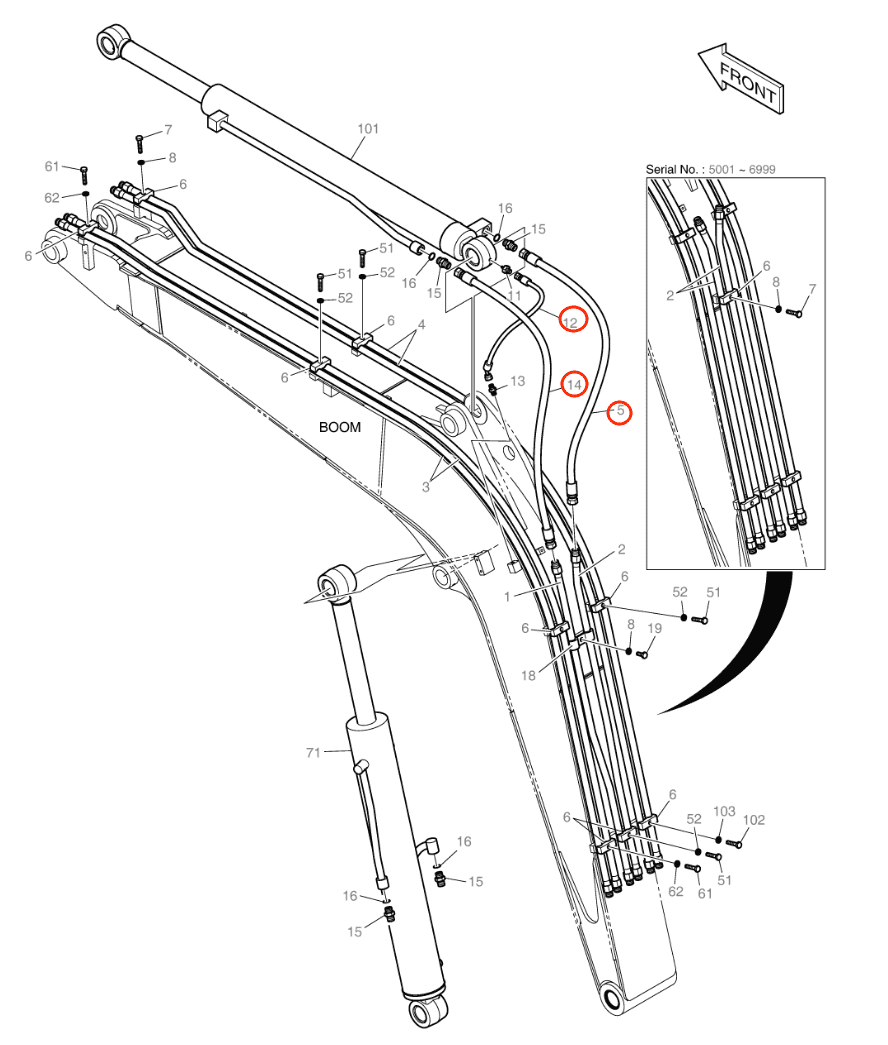

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 2184-1060D49 before removing the hose.

Doosan DX55W installation diagram showing hydraulic hose 2184-1060D49 at Pipe No. 12 — **Doosan DX55W**Part 2184-1060D49 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 2184-1060D49
Diagram pipe number: 12
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 530 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

DS2093017

Installation route: 前桥黄油管

Length: 530 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
