Individual hose record

121-6317 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B LN · Hydraulic Pump

Finished length680 mm

Locate this hose

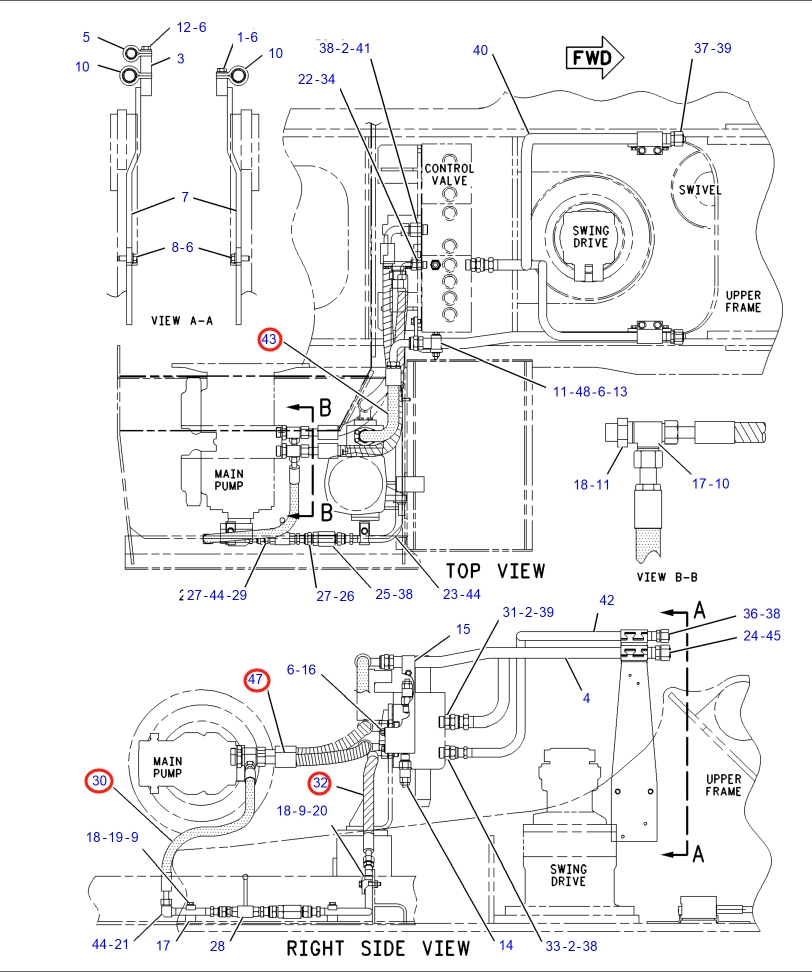

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 121-6317 before removing the hose.

Part number: 121-6317
Diagram pipe number: 30
Installation route: 液压泵右~铁管(液压泵下)
Hose specification: DN16;6SH-10;42Mpa
Finished length: 680 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 91

Installation route: 液压泵~

Diagram Pipe No. 31

Installation route: 液压泵~

Length: 2,815 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 19

Installation route: 液压泵~

For reference only. Confirm the actual hose before fabrication.
