Individual hose record

193-6549 Hose Repair Specifications

Excavator · Caterpillar · CAT®312C L · Attachments

Finished length1,650 mm

Locate this hose

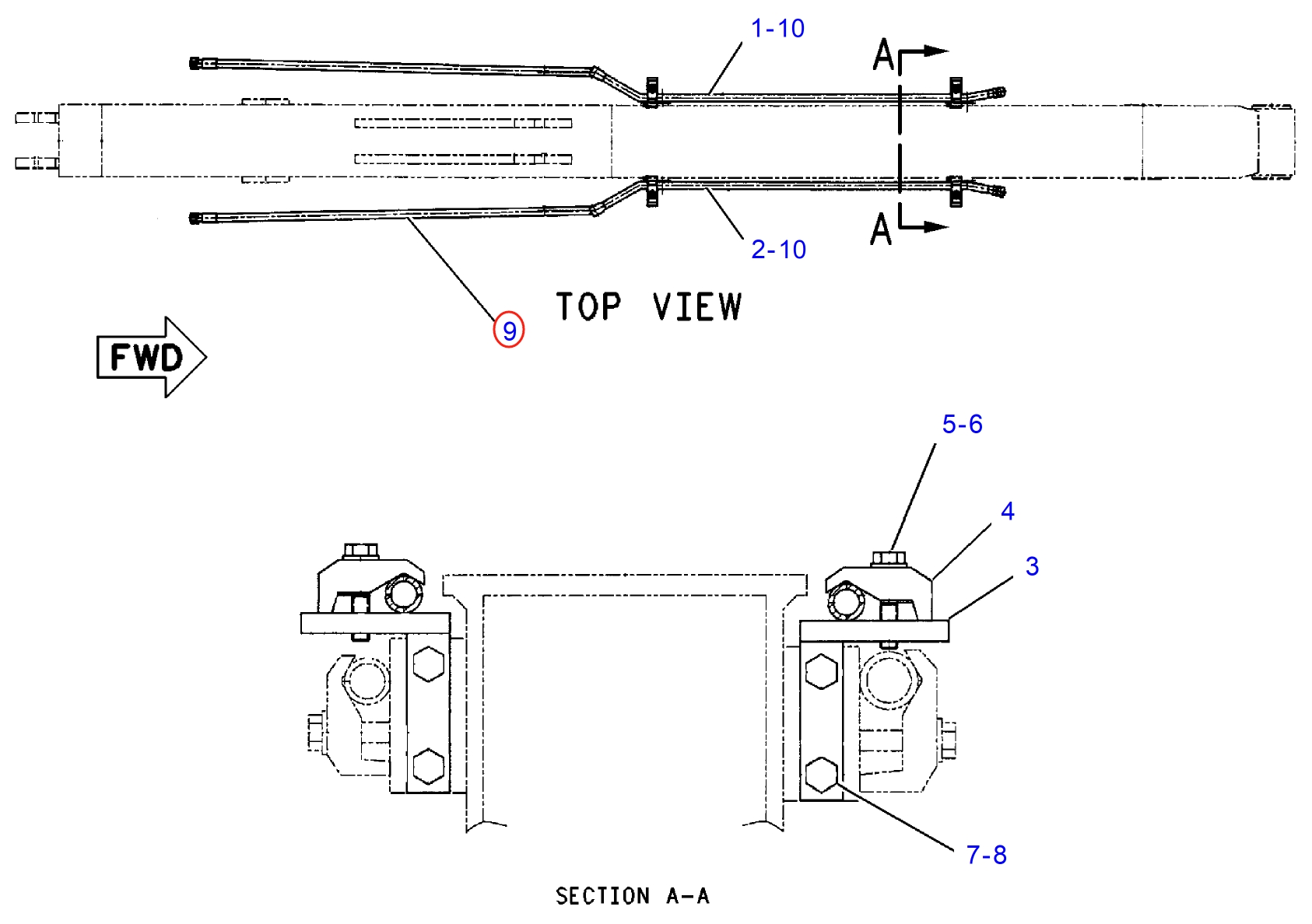

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 193-6549 before removing the hose.

Caterpillar CAT®312C L installation diagram showing hydraulic hose 193-6549 at Pipe No. 9 — **Caterpillar CAT®312C L**Part 193-6549 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 193-6549
Diagram pipe number: 9
Installation route: 大臂(附加装置)~小臂(附加装置)
Hose specification: DN13;4SP-8;28Mpa
Finished length: 1,650 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 4

146-1325

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,410 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

7I-7122

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,220 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

4I-0769

Installation route: 左踏板~

Length: 2,850 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

104-8973

Installation route: 手柄(推土铲)~控制阀(回转接头右)

Length: 1,700 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

173-7910

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,370 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

109-7556

Installation route: 手柄(推土铲)~进回油阀

Length: 450 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 92

7Y-4366

Installation route: 减压阀(分配阀下)~

Length: 750 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-5997

Installation route: 大臂(附加装置)~过渡接头(回转接头前)

Length: 950 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
