Individual hose record

7I-8252 Hose Repair Specifications

Excavator · Caterpillar · CAT®316E L · Control Lever

Finished length2,350 mm

Locate this hose

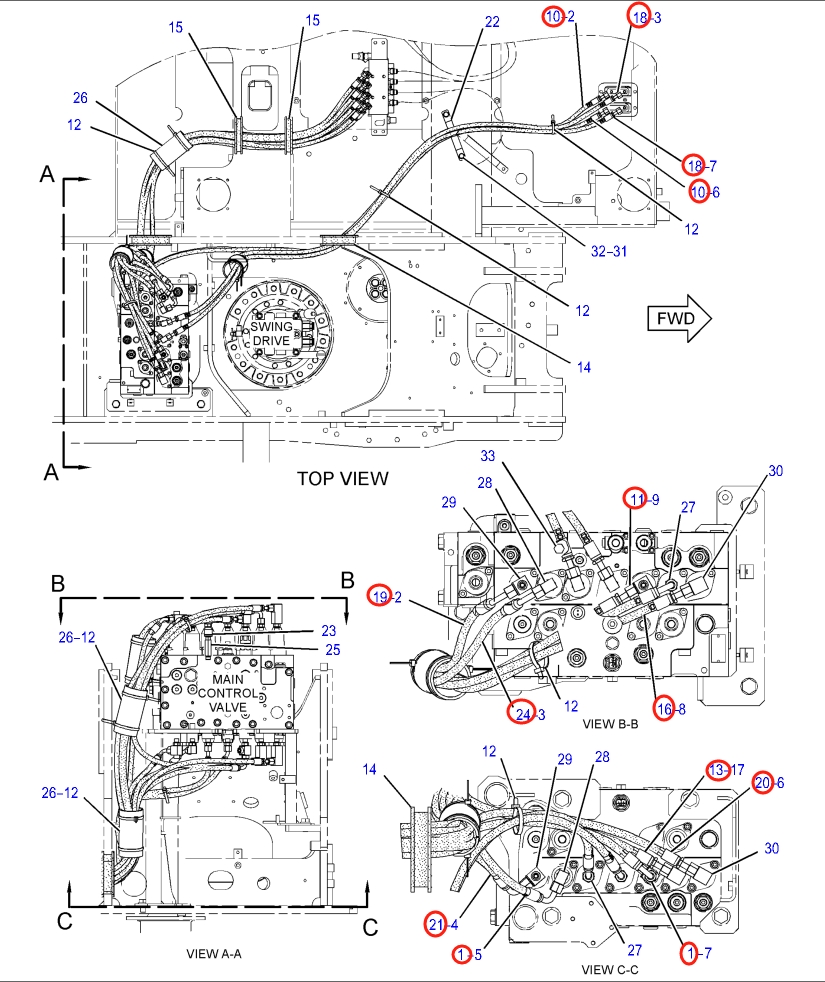

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 7I-8252 before removing the hose.

Part number: 7I-8252
Diagram pipe number: 11
Installation route: 中转接头~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,350 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 20

Installation route: 中转接头~分配阀上

Length: 2,000 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: 中转接头~分配阀上

Length: 2,430 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
