Individual hose record

DS2121192 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Pedal

Finished length2,380 mm

Locate this hose

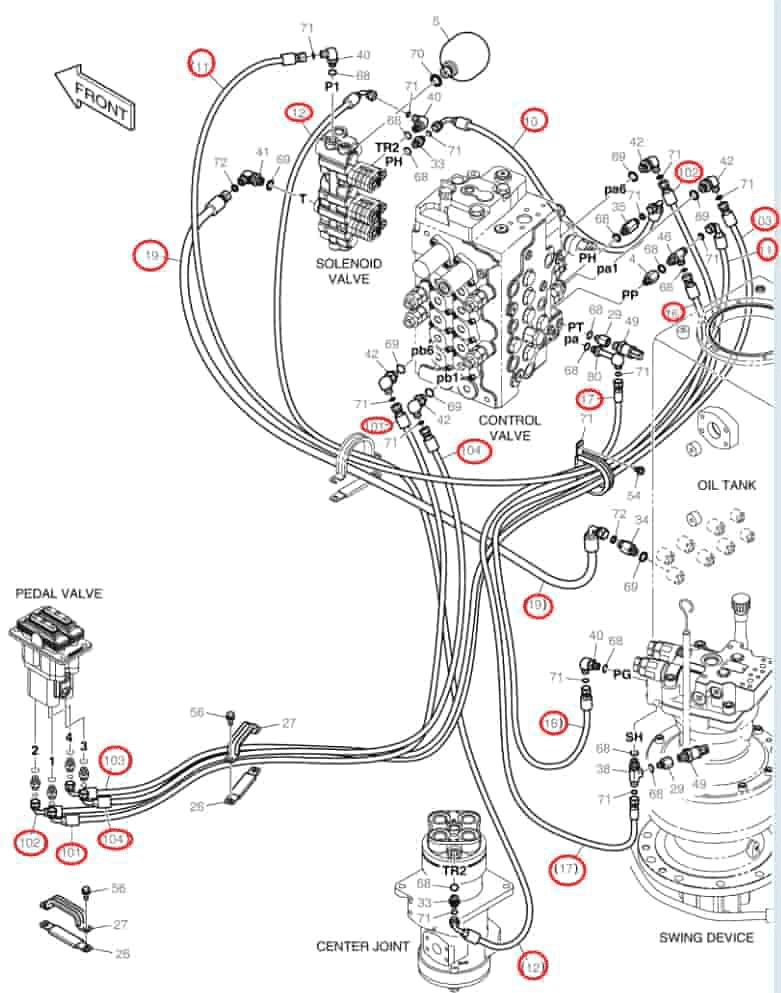

Installation diagram — Pipe No. 103

Locate Pipe No. 103 in the diagram, then confirm part number DS2121192 before removing the hose.

Doosan DX140LCR-3 installation diagram showing hydraulic hose DS2121192 at Pipe No. 103
Doosan DX140LCR-3Part DS2121192 · Pipe No. 103Open full-size diagram

Repair specifications

Part number
DS2121192
Diagram pipe number
103
Installation route
Travel pedal port 4 → control valve port PA1Original Chinese: 行走踏板4口~分配阀PA1口
Hose specification
DN6;1SN-04;22.5MPa
Finished length
2,380 mm
Working pressure
22.5 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 101

DS2121203

Installation route: 行走踏板1口~分配阀PB6口

Length
2,120 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 12

DS2119126

Installation route: 行走踏板~进回油阀

Length
310 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications
