4I-7608 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B · Control Lever

Finished length2,050 mm

Locate this hose

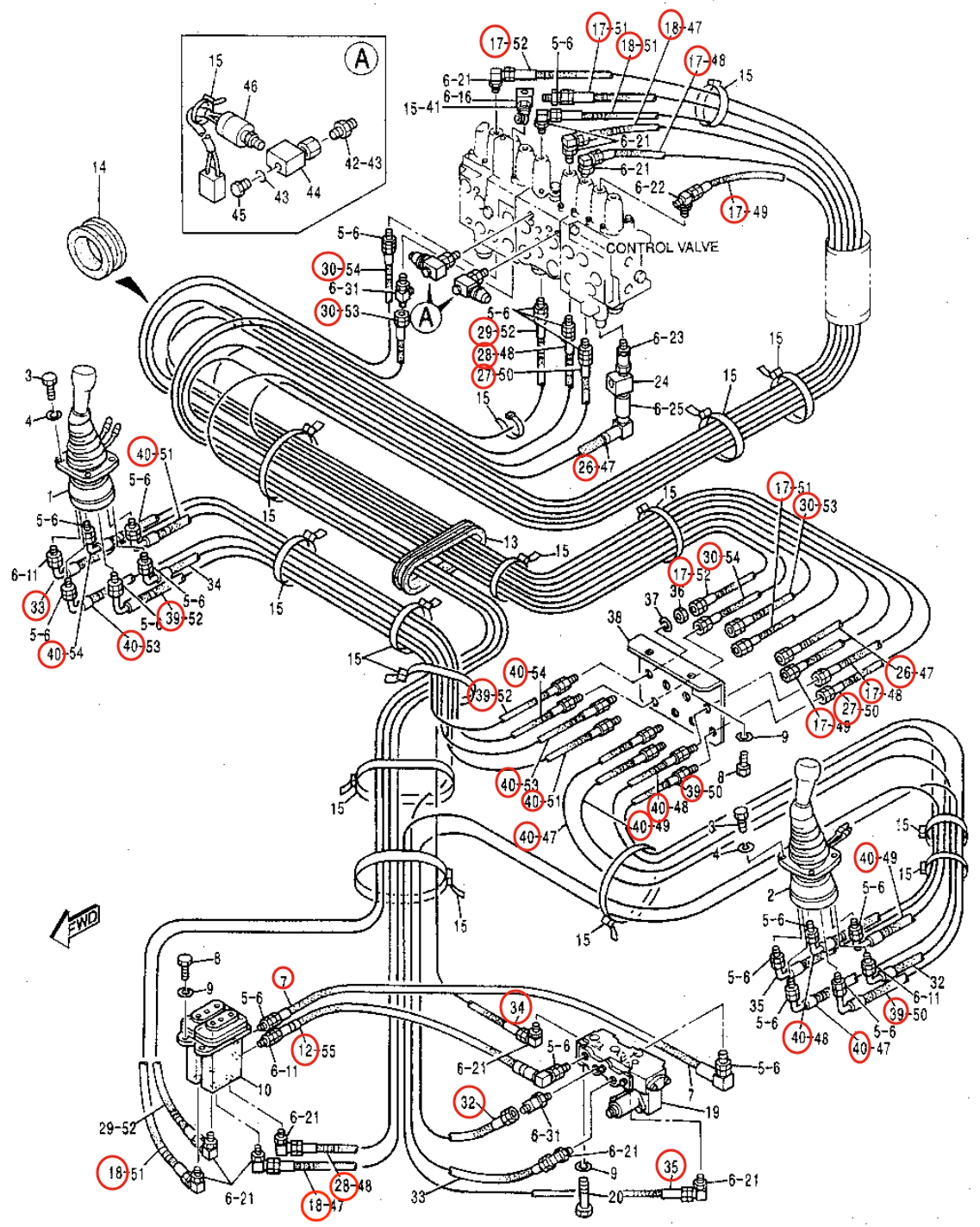

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 4I-7608 before removing the hose.

Caterpillar CAT®315B installation diagram showing hydraulic hose 4I-7608 at Pipe No. 30 — Caterpillar CAT®315BPart 4I-7608 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 4I-7608
Diagram pipe number: 30
Installation route: 中转接头~分配阀下右
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,050 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 12

5I-4487

Installation route: 中转接头~模式转换阀

Length: 1,350 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 27

5I-3127

Installation route: 中转接头~分配阀下左

Length: 1,900 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 17

4I-6233

Installation route: 中转接头~分配阀上

Length: 2,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 13

108-7159

Installation route: 中转接头~模式转换阀

Length: 1,450 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
