Individual hose record
126-6053 Hose Repair Specifications
Excavator · Caterpillar · CAT®312-A · Attachments – Quick Coupler
Finished length1,800 mm
Locate this hose

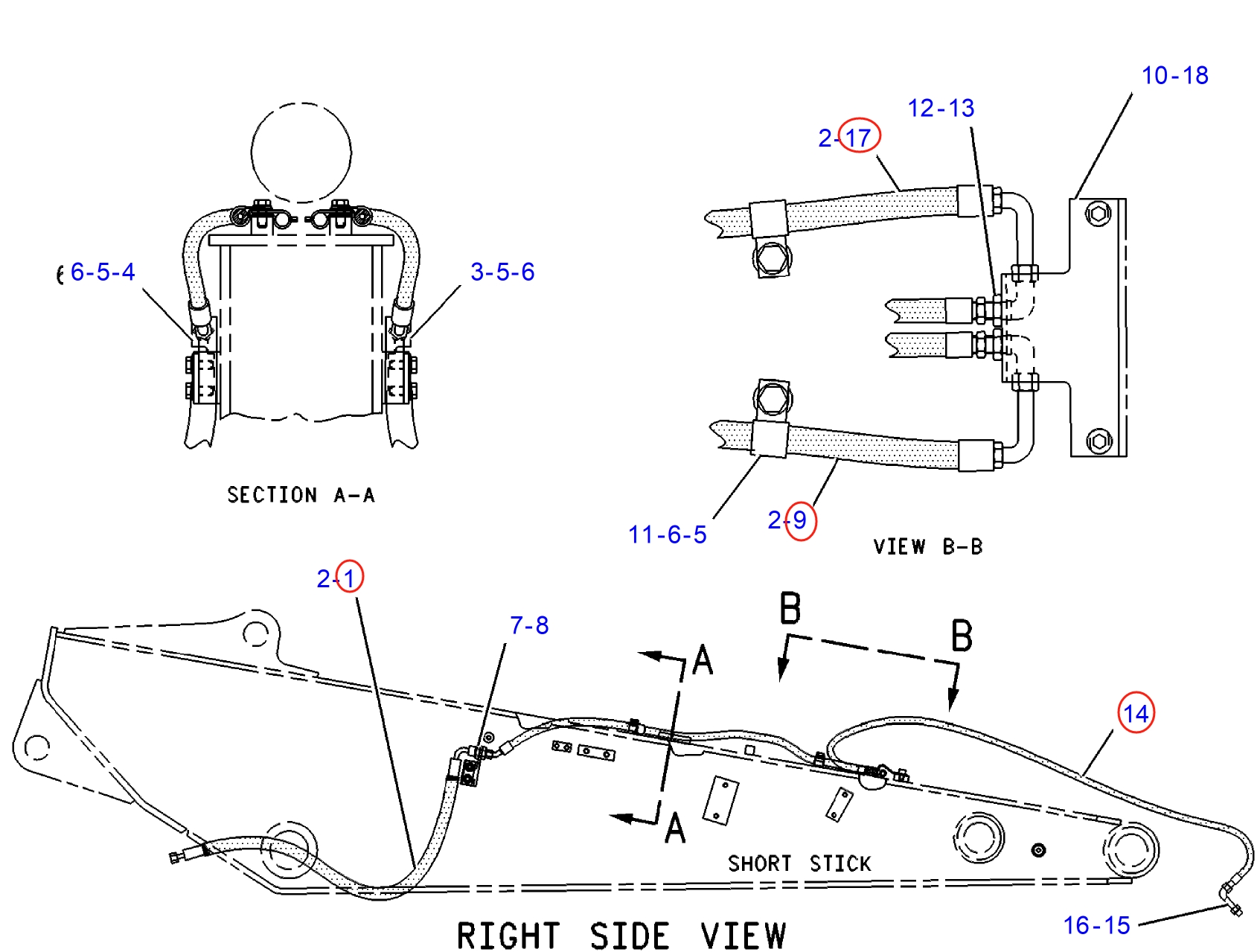

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 126-6053 before removing the hose.
Repair specifications
- Part number
- 126-6053
- Diagram pipe number
- 14
- Installation route
- 快换装置~过渡接头(小臂上)
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 1,800 mm
- Working pressure
- 40 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
