Individual hose record

135-1147 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B FM L · Swivel Joint

Finished length2,000 mm

Locate this hose

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 135-1147 before removing the hose.

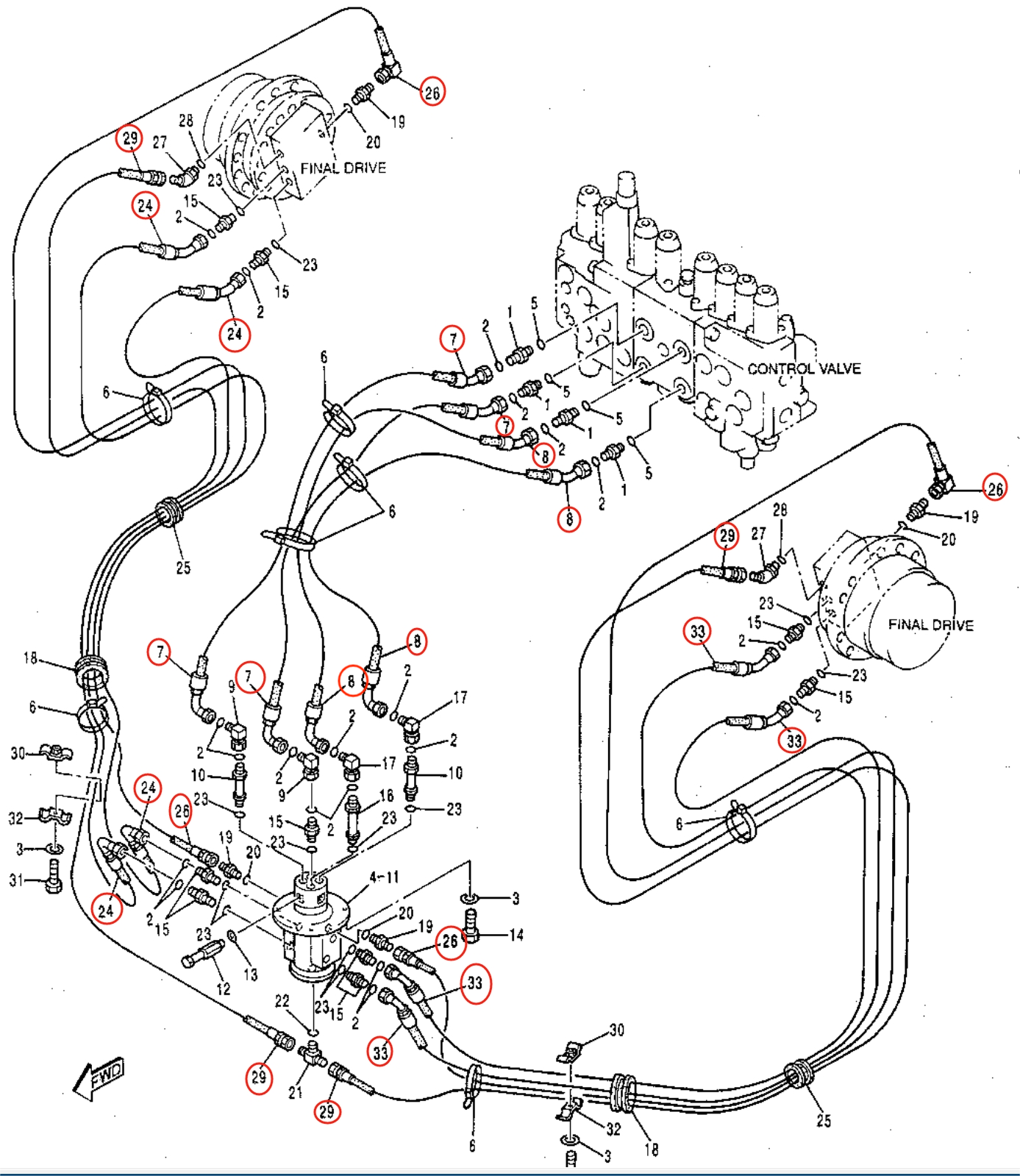

Caterpillar CAT®315B FM L installation diagram showing hydraulic hose 135-1147 at Pipe No. 29 — Caterpillar CAT®315B FM LPart 135-1147 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 135-1147
Diagram pipe number: 29
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN13;-8;10.3Mpa
Finished length: 2,000 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
