108-7159 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B FM L · Pedal

Finished length1,450 mm

Locate this hose

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 108-7159 before removing the hose.

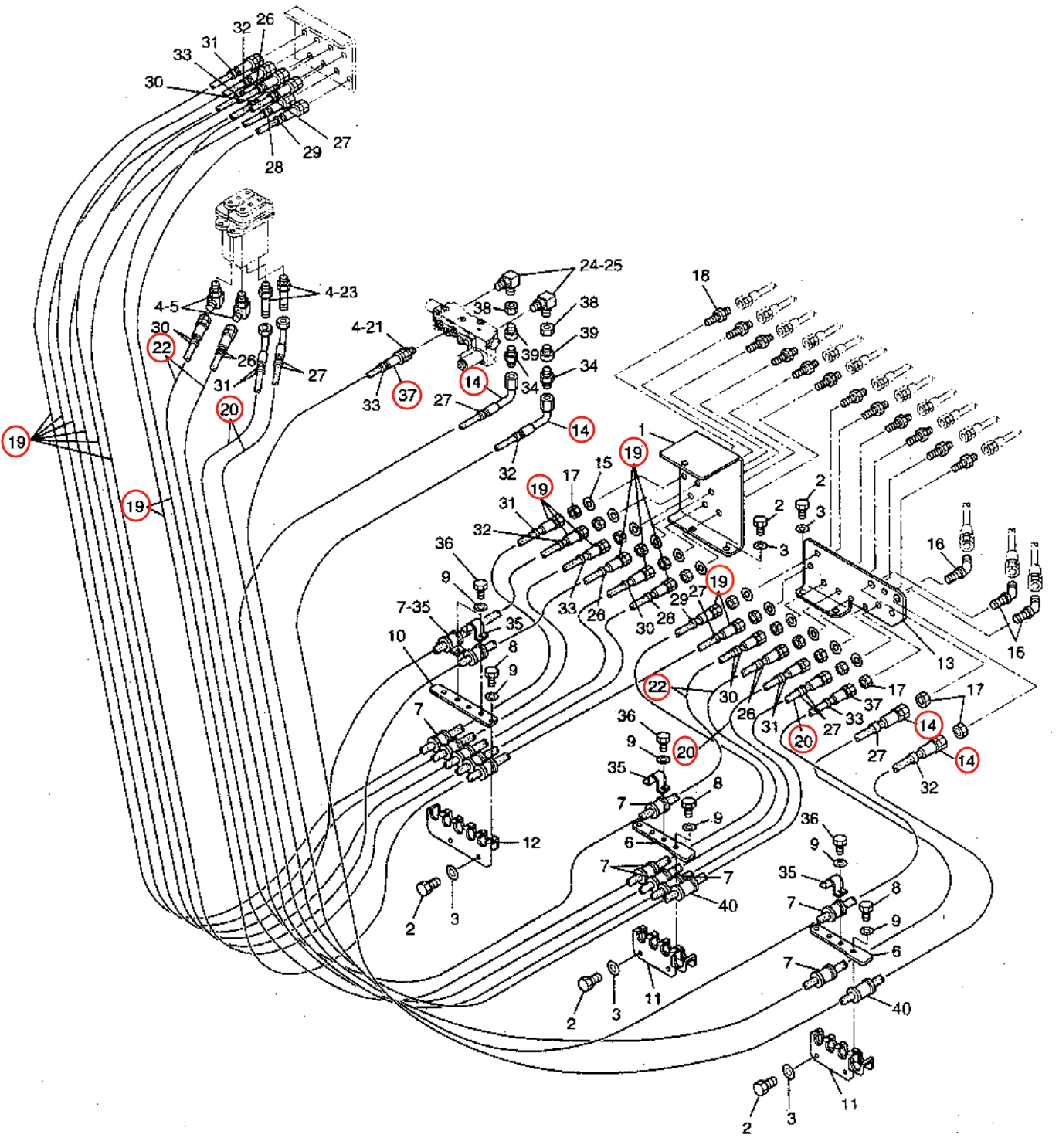

Caterpillar CAT®315B FM L installation diagram showing hydraulic hose 108-7159 at Pipe No. 22 — Caterpillar CAT®315B FM LPart 108-7159 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 108-7159
Diagram pipe number: 22
Installation route: 行走踏板~后中转接头(踏板)
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,450 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
