Individual hose record

108-7497 Hose Repair Specifications

Excavator · Caterpillar · CAT®315-A L · Attachments

Finished length1,100 mm

Locate this hose

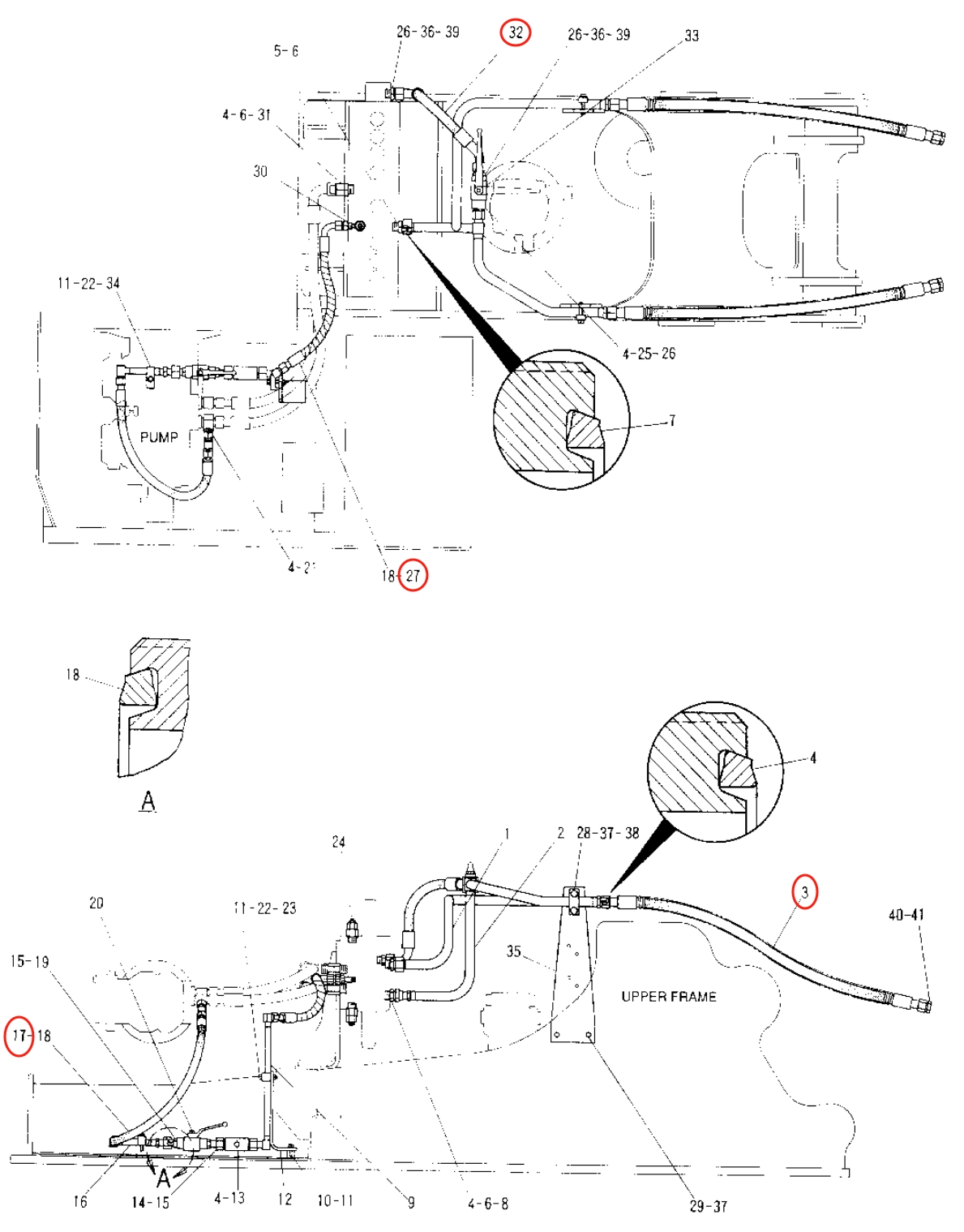

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 108-7497 before removing the hose.

Caterpillar CAT®315-A L installation diagram showing hydraulic hose 108-7497 at Pipe No. 3
Caterpillar CAT®315-A LPart 108-7497 · Pipe No. 3Open full-size diagram

Repair specifications

Part number
108-7497
Diagram pipe number
3
Installation route
大臂(附加装置)~分配阀前
Hose specification
DN19;6SH-12;42Mpa
Finished length
1,100 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 5

4I-1455

Installation route: 踏板(附加装置)~分配阀下

Length
2,330 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 8

4I-3778

Installation route: 先导阀~手动阀(连接分配阀)

Length
820 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 6

7I-0076

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
1,370 mm
Specification
DN19;4SP-12;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
