Individual hose record

8K-4232 Hose Repair Specifications

Excavator · Caterpillar · CAT®235 · Attachments

Finished length950 mm

Locate this hose

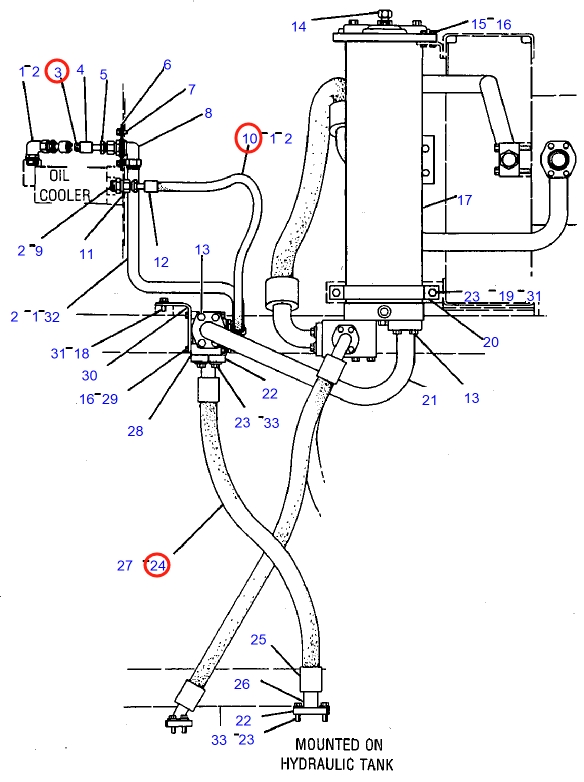

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 8K-4232 before removing the hose.

Caterpillar CAT®235 installation diagram showing hydraulic hose 8K-4232 at Pipe No. 3 — Caterpillar CAT®235Part 8K-4232 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 8K-4232
Diagram pipe number: 3
Installation route: 液压油散热器左~液压油散热器右
Hose specification: DN25;1SN-16;7Mpa
Finished length: 950 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

033-2159

Installation route: 单向阀(增压器)~控制阀(增压器)

Length: 368 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 6

2V-8679

Installation route: 接线板(驾驶室后)~

Length: 794 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
