Individual hose record

099-5589 Hydraulic Hose Replacement Specifications

Excavator · Caterpillar · CAT®EL200B · Attachments

Finished length1,600 mm

Hose repair card

Everything needed to identify and make this hose

Caterpillar CAT®EL200BPipe No. 161 · Part 099-5589

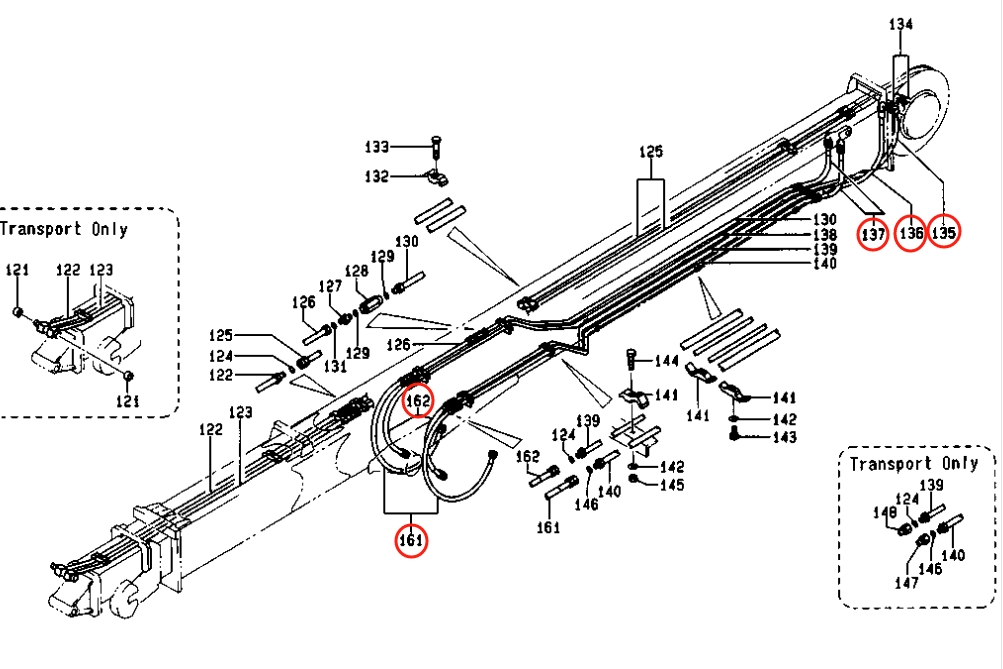

LocateInstallation diagram — Pipe No. 161
Caterpillar CAT®EL200B installation diagram showing hydraulic hose 099-5589 at Pipe No. 161
Make this hose099-5589
L = 1,600 mmDN25;6SH-16;42MpaL0°R0°
Finished length1,600 mm
Working pressure42 MPa
Hose specificationDN25;6SH-16;42Mpa
Quantity2
L0°

Left fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

R0°

Right fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

RouteInstallation route — English review pending

Tap the card to enlarge it without leaving this page.

099-5589 hose repair card

Repair specifications

Part number
099-5589
Diagram pipe number
161
Installation route
Installation route — English review pendingOriginal Chinese: 伸缩臂管路
Hose specification
DN25;6SH-16;42Mpa
Finished length
1,600 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2
