Individual hose record

7I-0175 Hose Repair Specifications

Excavator · Caterpillar · CAT®312-A · Control Lever

Finished length1,800 mm

Locate this hose

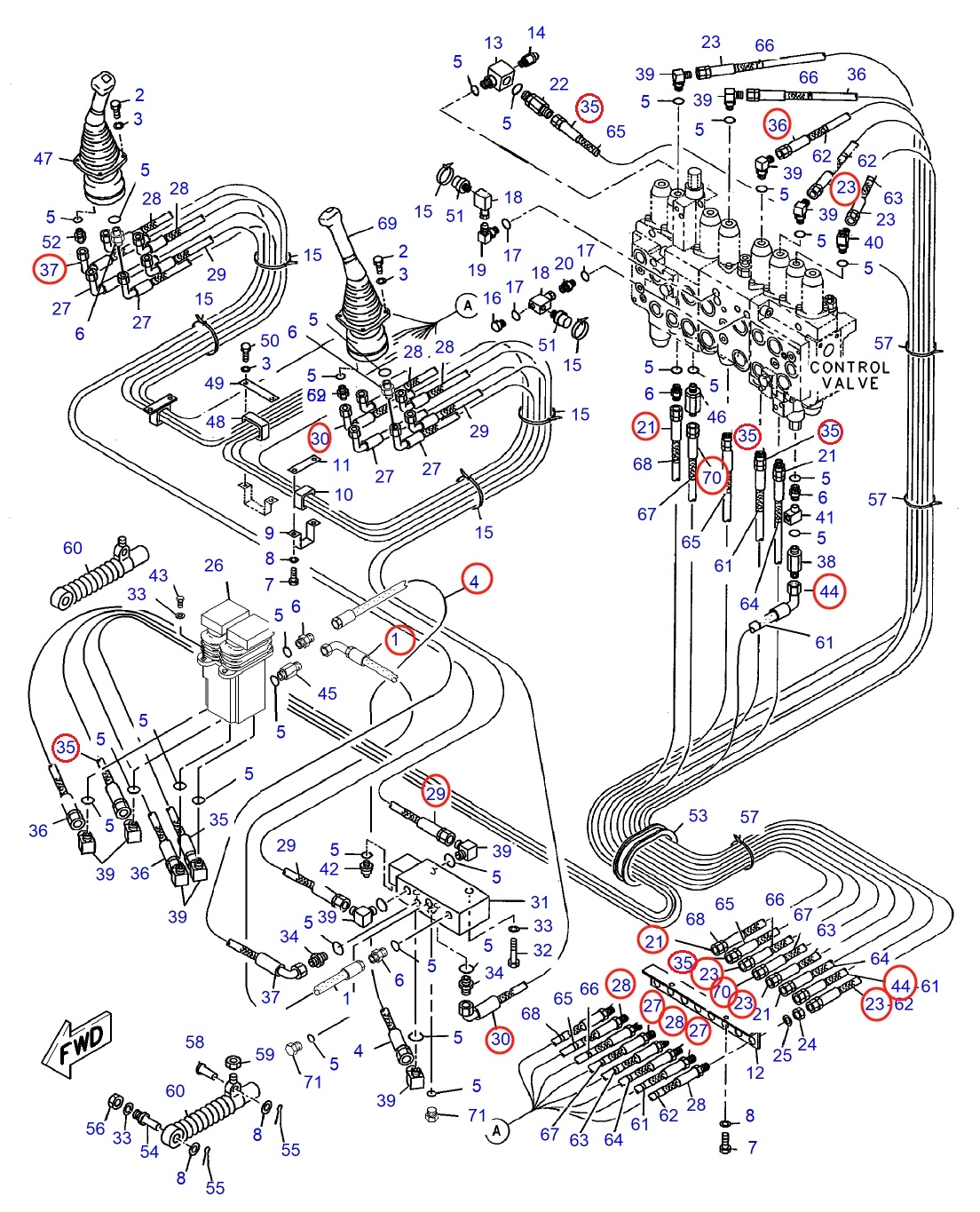

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 7I-0175 before removing the hose.

Caterpillar CAT®312-A installation diagram showing hydraulic hose 7I-0175 at Pipe No. 21 — Caterpillar CAT®312-APart 7I-0175 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 7I-0175
Diagram pipe number: 21
Installation route: 中转接头~分配阀下
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,800 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

4I-1413

Installation route: 中转接头~分配阀下

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 23

4I-1413

Installation route: 中转接头~分配阀上

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
