Individual hose record
8U-6472 Hose Repair Specifications
Excavator · Caterpillar · CAT®205B · Boom Assembly
Finished length918 mm
Locate this hose

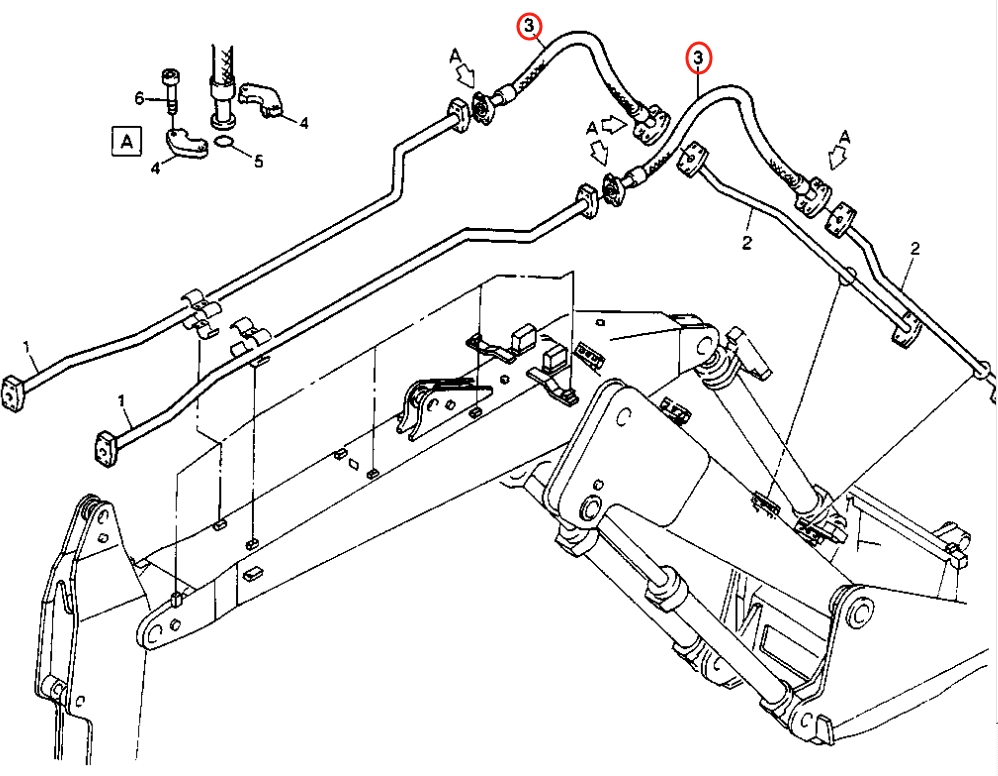

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 8U-6472 before removing the hose.
Repair specifications
- Part number
- 8U-6472
- Diagram pipe number
- 3
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN13;6SH-8;42Mpa
- Finished length
- 918 mm
- Working pressure
- 42 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
Same system
Related Hoses
- Length
- 960 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 1,201 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,201 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,201 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
