Individual hose record
269-9577 Hose Repair Specifications
Excavator · Caterpillar · CAT®318D2 L · Boom Assembly
Finished length1,200 mm
Locate this hose

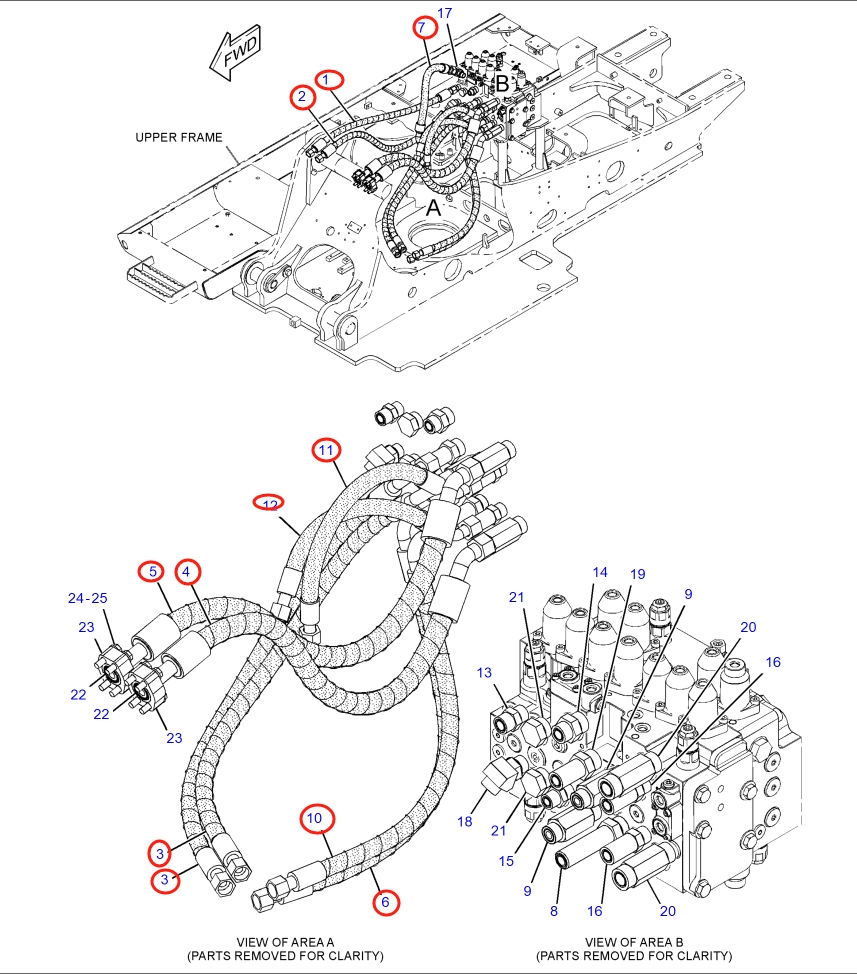

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 269-9577 before removing the hose.
Repair specifications
- Part number
- 269-9577
- Diagram pipe number
- 2
- Installation route
- 大臂左3
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 1,200 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 690 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
