Individual hose record
113-6738 Hose Repair Specifications
Excavator · Caterpillar · CAT®311F LRR · Pedal
Finished length3,100 mm
Locate this hose

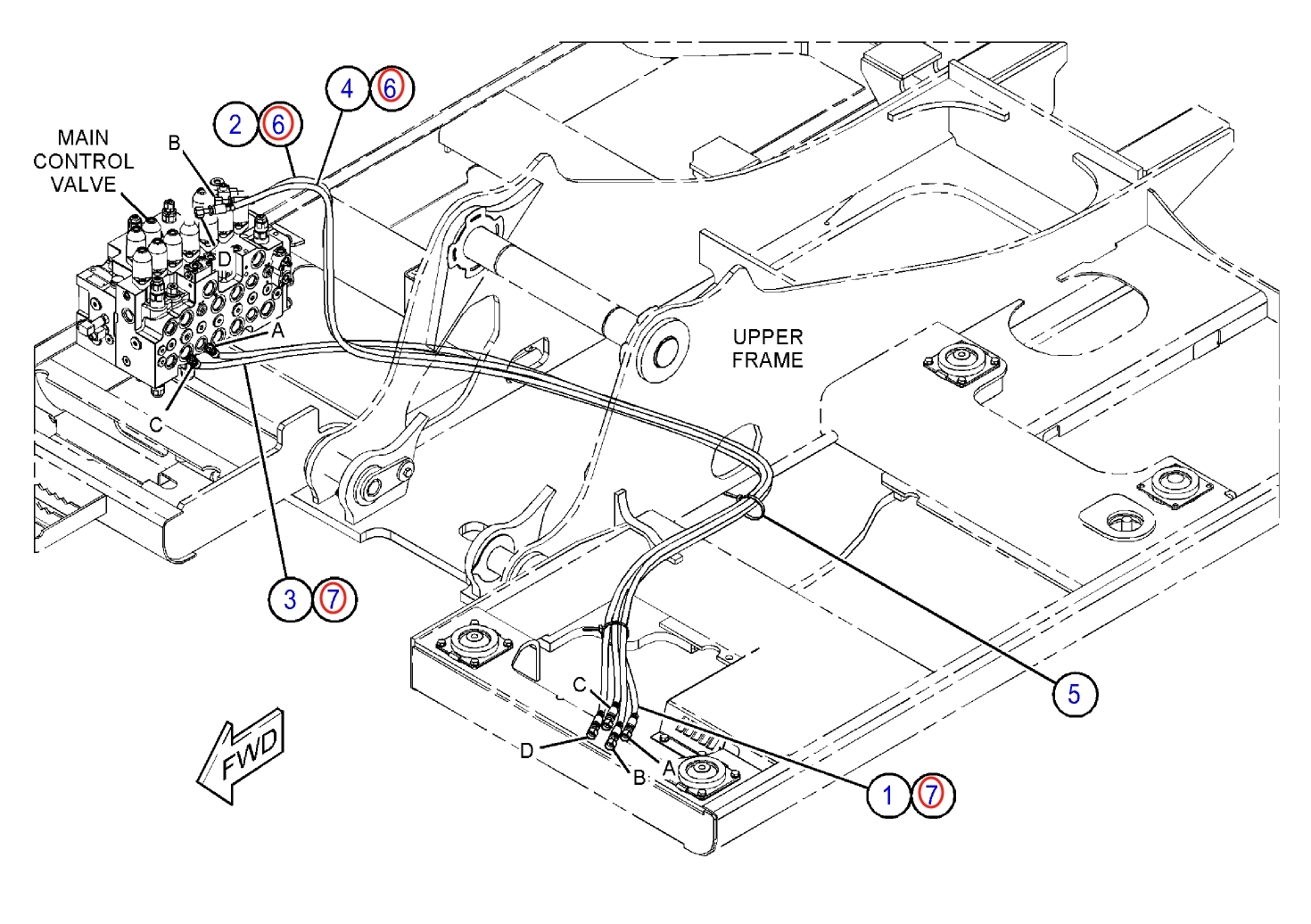

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 113-6738 before removing the hose.
Repair specifications
- Part number
- 113-6738
- Diagram pipe number
- 6
- Installation route
- 行走踏板~分配阀上
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 3,100 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
