Individual hose record
4I-3823 Hose Repair Specifications
Excavator · Caterpillar · CAT®315-A · Boom Assembly
Finished length980 mm
Locate this hose

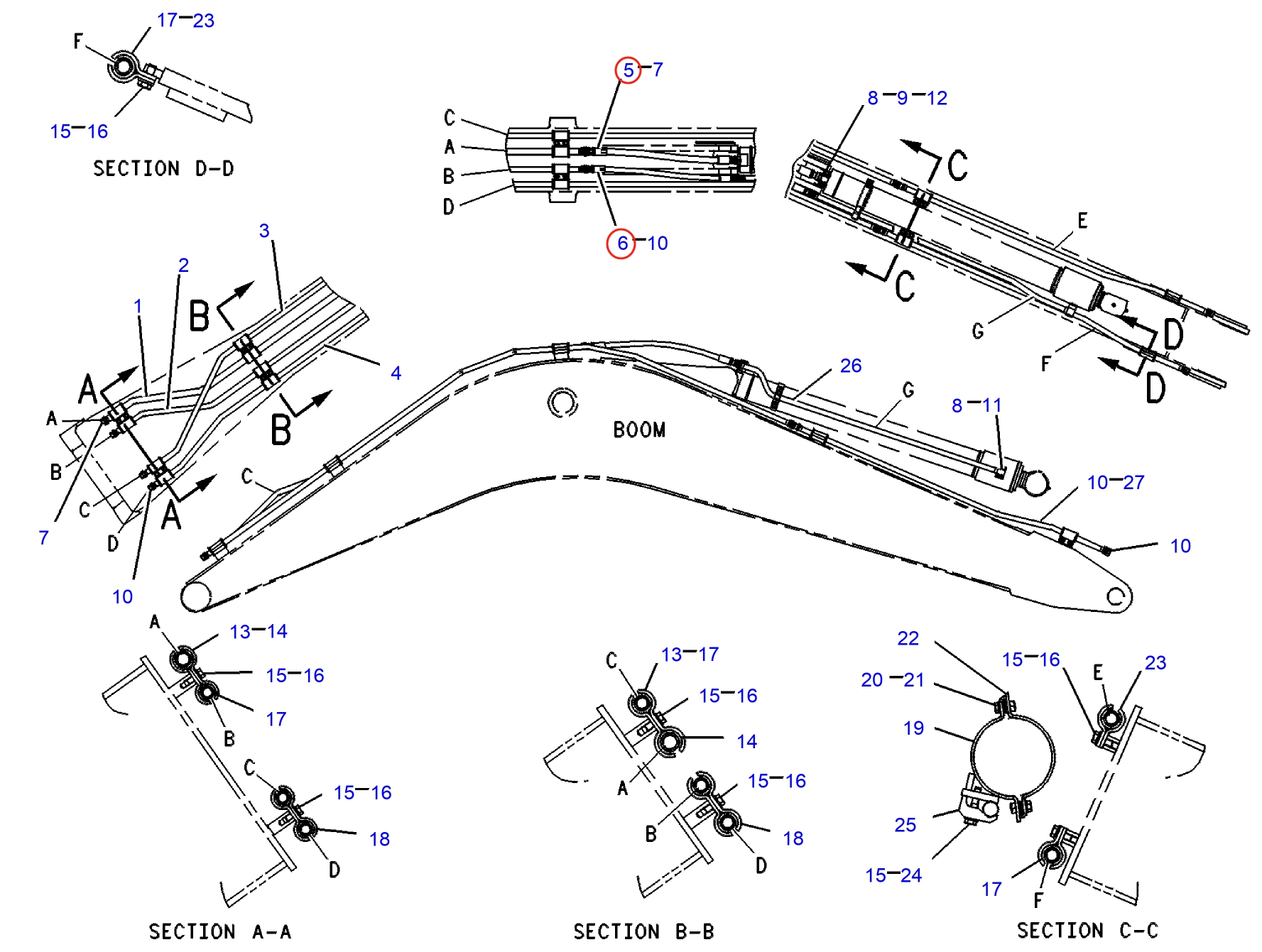

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4I-3823 before removing the hose.
Repair specifications
- Part number
- 4I-3823
- Diagram pipe number
- 5
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- DN25;6SH-16;42Mpa
- Finished length
- 980 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
