Individual hose record

503-1919 Hose Repair Specifications

Excavator · Caterpillar · CAT®313D2-GC · Attachments – Quick Coupler

Finished length2,240 mm

Locate this hose

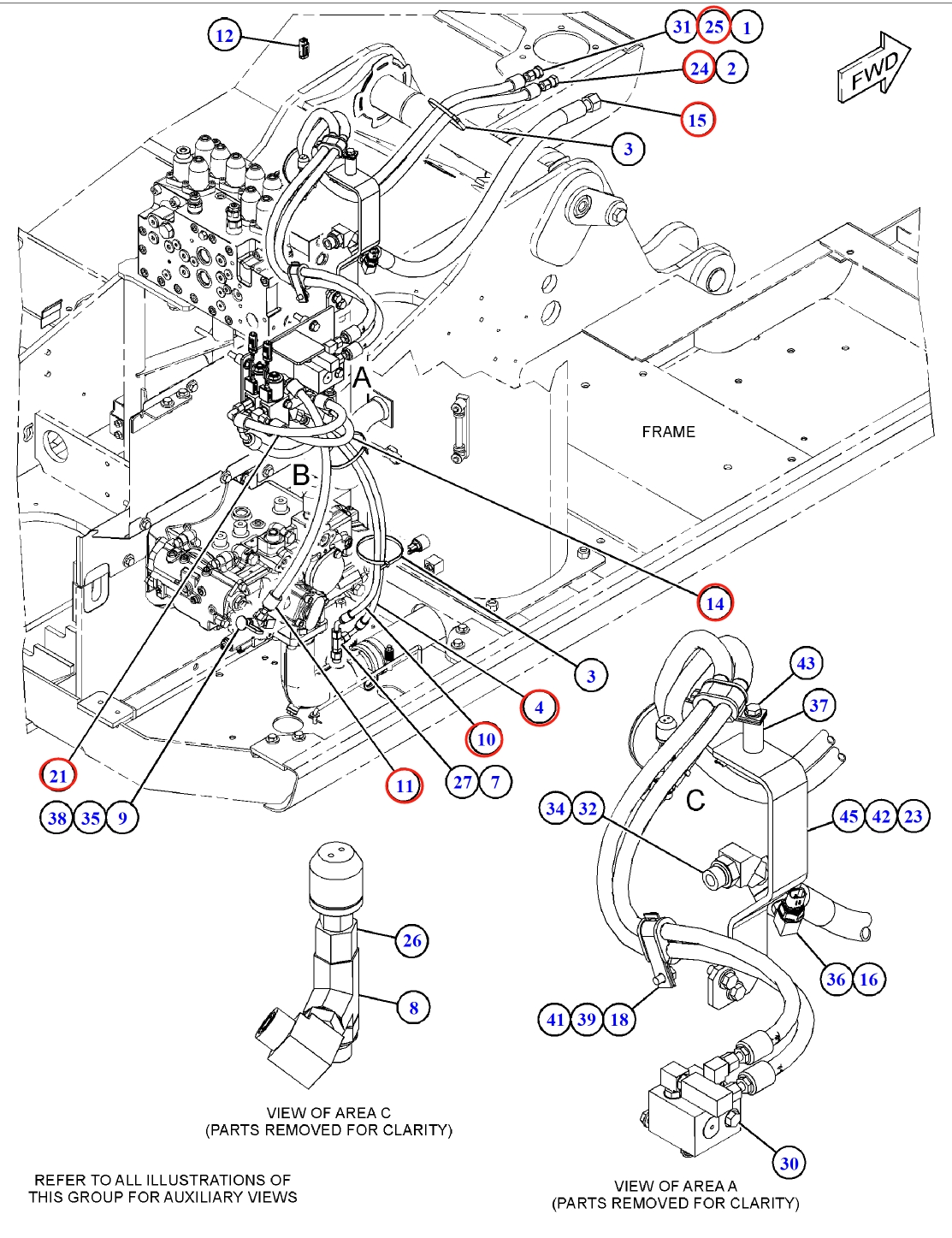

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 503-1919 before removing the hose.

Part number: 503-1919
Diagram pipe number: 24
Installation route: 大臂(快换)~单向阀(液压泵上)
Hose specification: DN10;6SH-6;42Mpa
Finished length: 2,240 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 25

Installation route: 大臂(快换)~单向阀(液压泵上)

Length: 2,330 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 25

Installation route: 大臂(快换)~单向阀(液压泵上)

Length: 2,190 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 大臂(快换)~小臂(快换)

Length: 1,800 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 大臂(快换)~小臂(快换)

Length: 1,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 26

Installation route: 大臂(快换)~单向阀(液压泵上)

Length: 2,250 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
