Individual hose record
185-9047 Hose Repair Specifications
Excavator · Caterpillar · CAT®318B · Hydraulic Pump
Finished length660 mm
Locate this hose

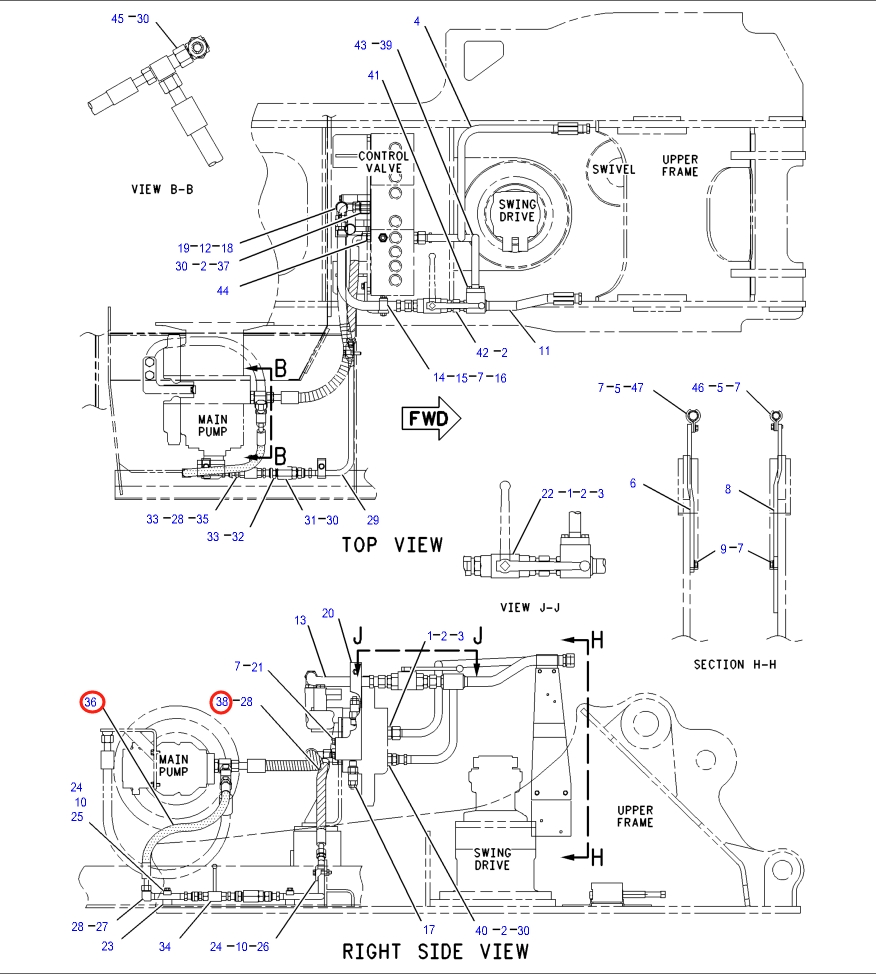

Installation diagram — Pipe No. 36
Locate Pipe No. 36 in the diagram, then confirm part number 185-9047 before removing the hose.
Repair specifications
- Part number
- 185-9047
- Diagram pipe number
- 36
- Installation route
- 液压泵右~铁管(液压泵下)
- Hose specification
- DN16;6SH-10;42Mpa
- Finished length
- 660 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
