190-8614 Hose Repair Specifications

Excavator · Caterpillar · CAT®312C · Attachments

Finished length1,000 mm

Locate this hose

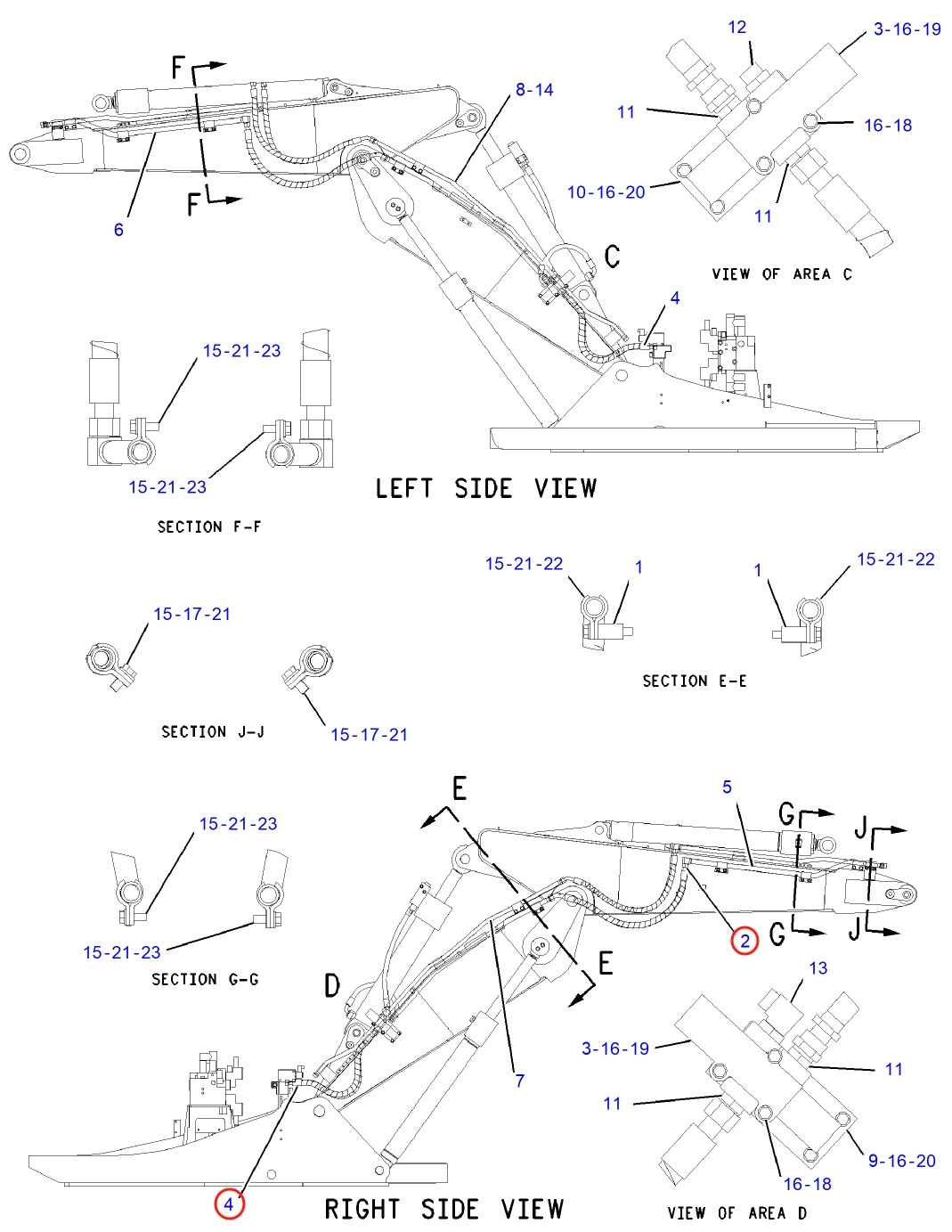

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 190-8614 before removing the hose.

Caterpillar CAT®312C installation diagram showing hydraulic hose 190-8614 at Pipe No. 4 — **Caterpillar CAT®312C**Part 190-8614 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 190-8614
Diagram pipe number: 4
Installation route: 大臂(附加装置)~过渡阀块(附加装置)
Hose specification: DN25;6SH-16;42Mpa
Finished length: 1,000 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2
