307-5096 Hose Repair Specifications

Excavator · Caterpillar · CAT®312E · Swivel Joint

Finished length1,800 mm

Locate this hose

Installation diagram — Pipe No. 7

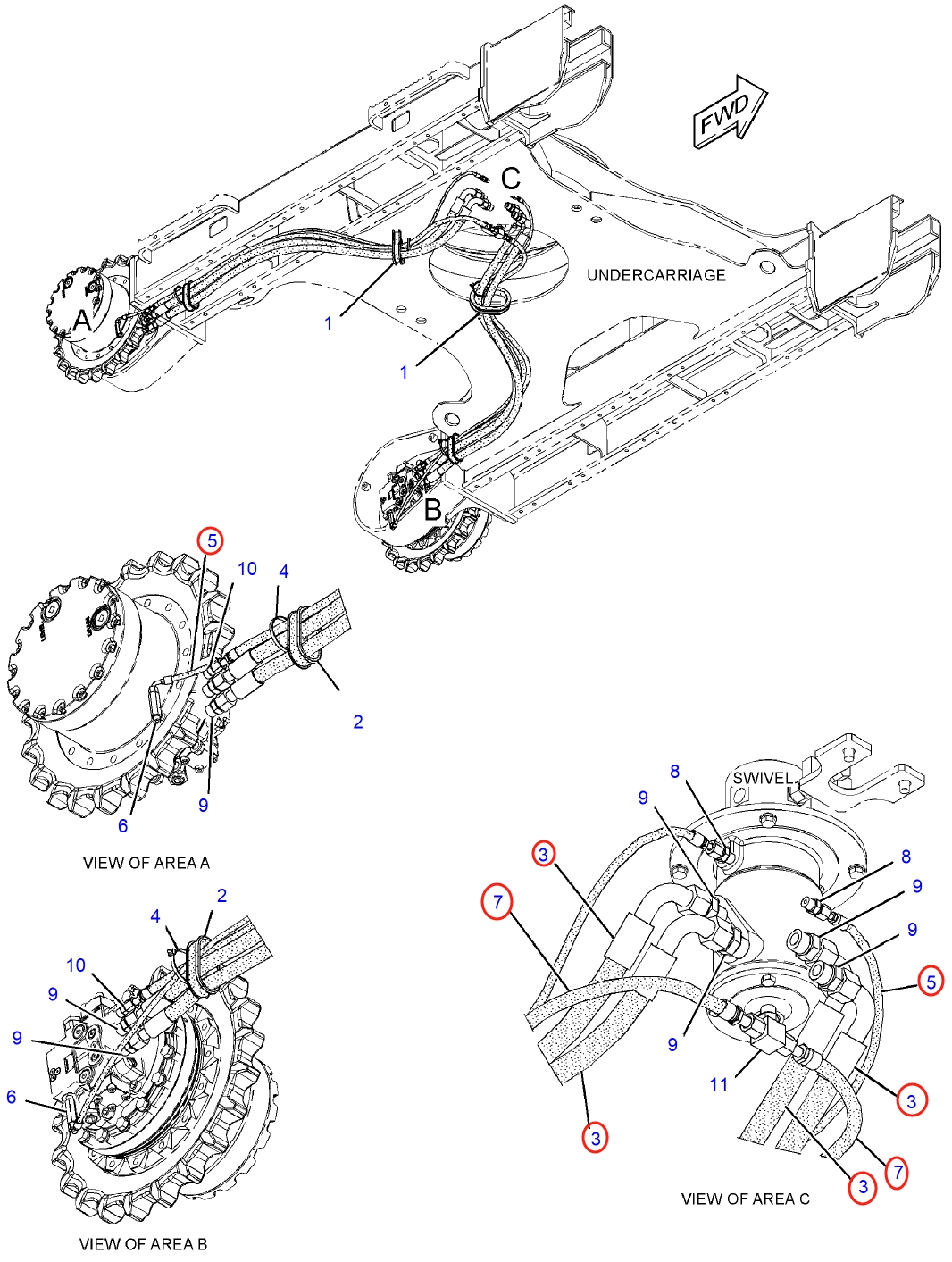

Locate Pipe No. 7 in the diagram, then confirm part number 307-5096 before removing the hose.

Caterpillar CAT®312E installation diagram showing hydraulic hose 307-5096 at Pipe No. 7
Caterpillar CAT®312EPart 307-5096 · Pipe No. 7Open full-size diagram

Repair specifications

Part number
307-5096
Diagram pipe number
7
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN13;-8;10.3Mpa
Finished length
1,800 mm
Working pressure
10.3 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2
