Individual hose record
329-2730 Hose Repair Specifications
Excavator · Caterpillar · CAT®313D · Solenoid Valve
Finished length1,802 mm
Locate this hose

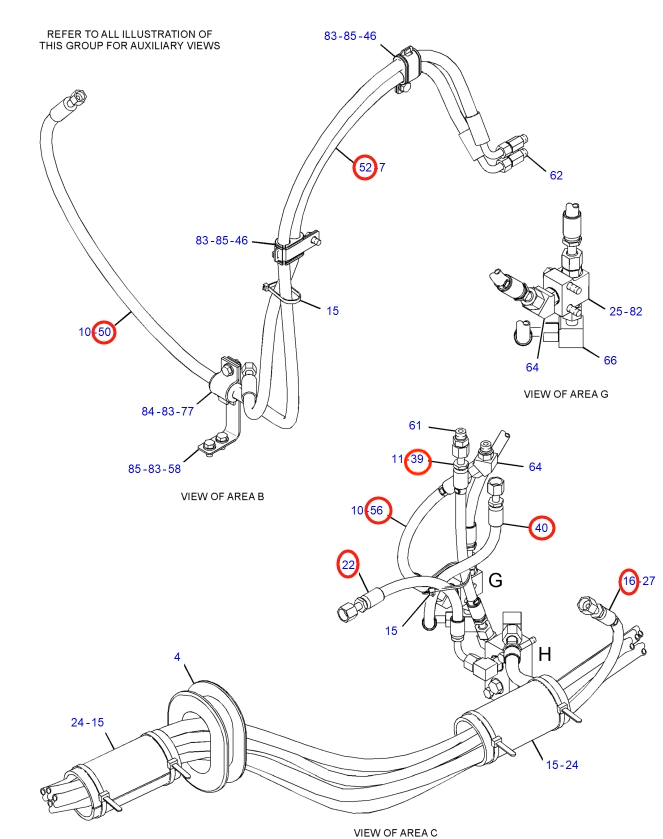

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 329-2730 before removing the hose.
Repair specifications
- Part number
- 329-2730
- Diagram pipe number
- 16
- Installation route
- 蓄能器电磁阀~
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,802 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
