Individual hose record
251-2627 Hose Repair Specifications
Excavator · Caterpillar · CAT®314D LCR · Grease Lines
Finished length1,900 mm
Locate this hose

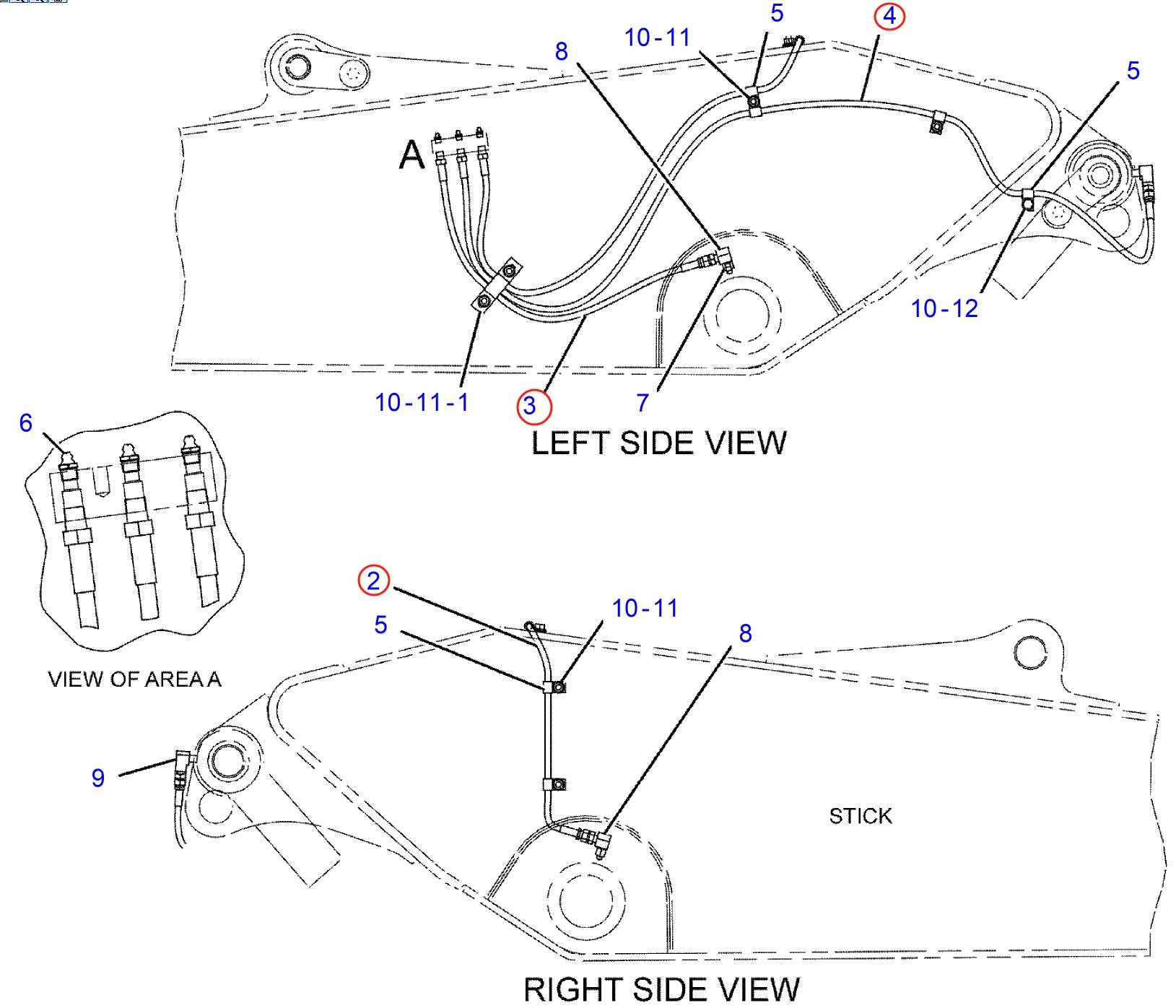

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 251-2627 before removing the hose.
Repair specifications
- Part number
- 251-2627
- Diagram pipe number
- 4
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,900 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Quantity
- 1
