Individual hose record
108-7143 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Solenoid Valve
Finished length1,120 mm
Locate this hose

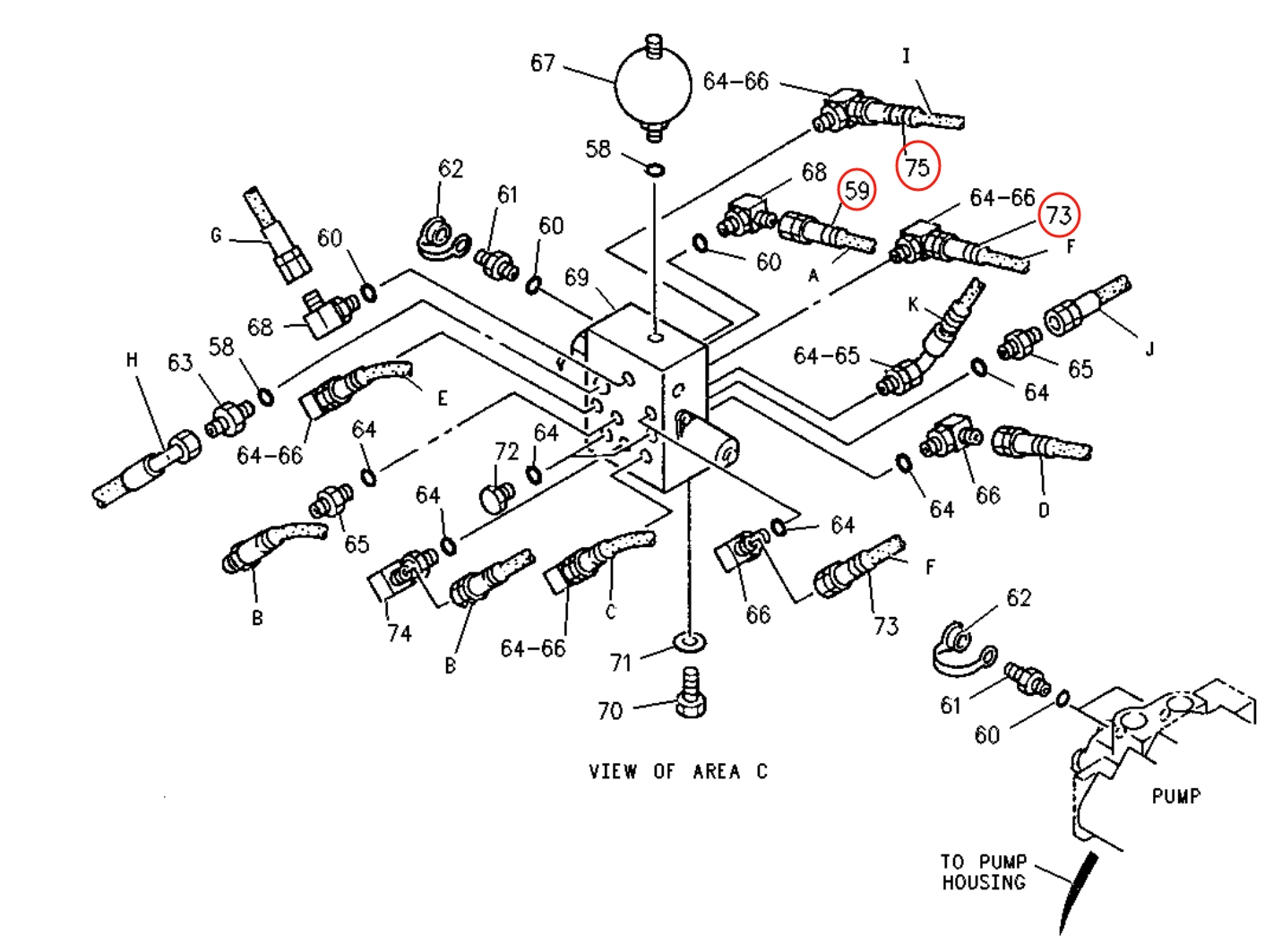

Installation diagram — Pipe No. 73
Locate Pipe No. 73 in the diagram, then confirm part number 108-7143 before removing the hose.
Repair specifications
- Part number
- 108-7143
- Diagram pipe number
- 73
- Installation route
- 蓄能器电磁阀(液压油箱后)~
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,120 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 2,360 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
