Individual hose record

371-2997 Hose Repair Specifications

Excavator · Caterpillar · CAT®315F LCR · Hydraulic Pump

Finished length960 mm

Locate this hose

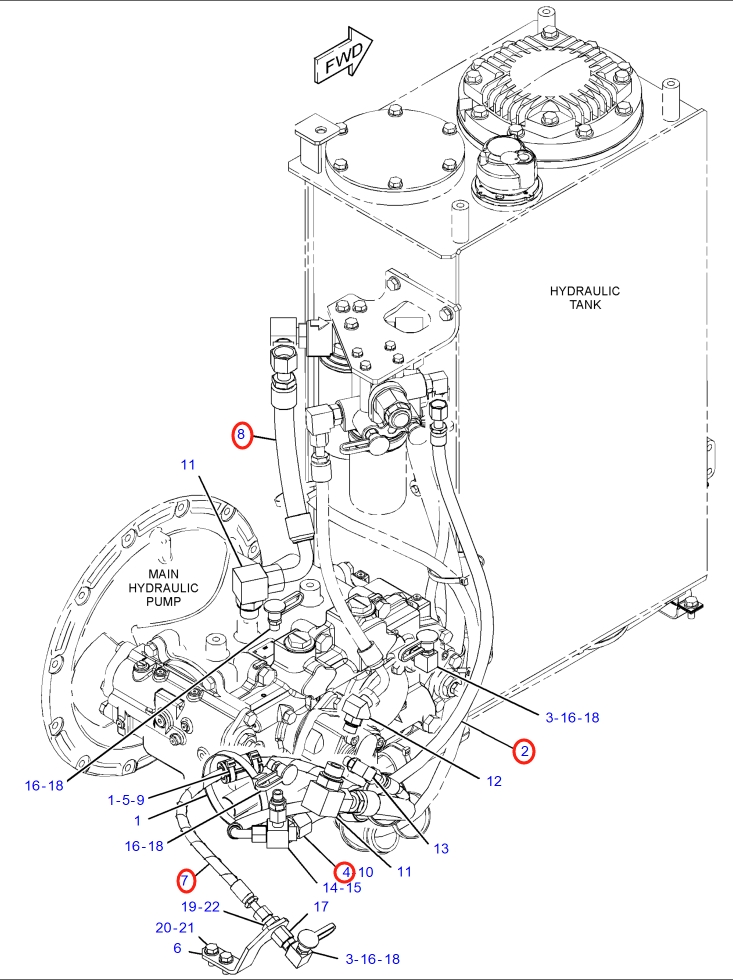

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 371-2997 before removing the hose.

Part number: 371-2997
Diagram pipe number: 7
Installation route: 液压泵~测压接头
Hose specification: DN10;-6;10.3Mpa
Finished length: 960 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 17

Installation route: 液压泵下~电磁阀(分配阀右)

Length: 1,970 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 20

Installation route: 液压泵上~电磁阀(分配阀右)

Length: 2,360 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
