Individual hose record

187-5915 Hose Repair Specifications

Excavator · Caterpillar · CAT®313D2 LGP · Swivel Joint

Finished length2,400 mm

Locate this hose

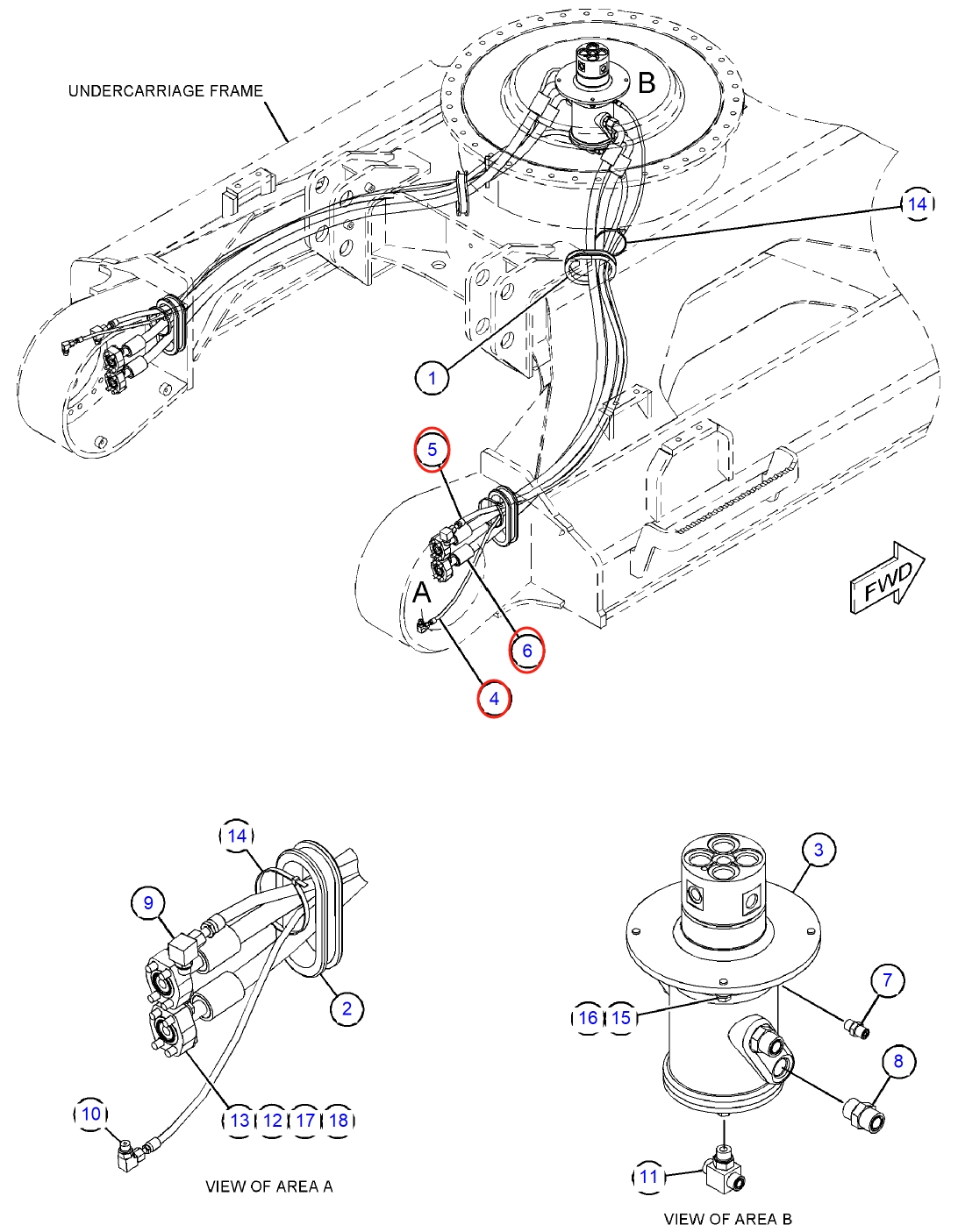

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 187-5915 before removing the hose.

Caterpillar CAT®313D2 LGP installation diagram showing hydraulic hose 187-5915 at Pipe No. 4
Caterpillar CAT®313D2 LGPPart 187-5915 · Pipe No. 4Open full-size diagram

Repair specifications

Part number
187-5915
Diagram pipe number
4
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN6;1SN-4;10.4Mpa
Finished length
2,400 mm
Working pressure
10.4 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 5

248-9428

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,000 mm
Specification
DN13;1SN-8;10.4Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode
See the exact question being sent
I am checking hydraulic hose repair information for "187-5915 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_c62f0315f5a39864ed963916/
HoseSeek currently shows: part number: 187-5915; diagram pipe number: 4; installation route: Swivel joint → travel motor; hose specification: DN6;1SN-4;10.4Mpa; finished length in millimetres: 2400; left fitting: American female thread, flat-face seal; right fitting: American female thread, flat-face seal.

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

For reference only. Confirm the actual hose before fabrication.
