Individual hose record

137-6451 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B L · Attachments – Lock Valve

Finished length2,100 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 137-6451 before removing the hose.

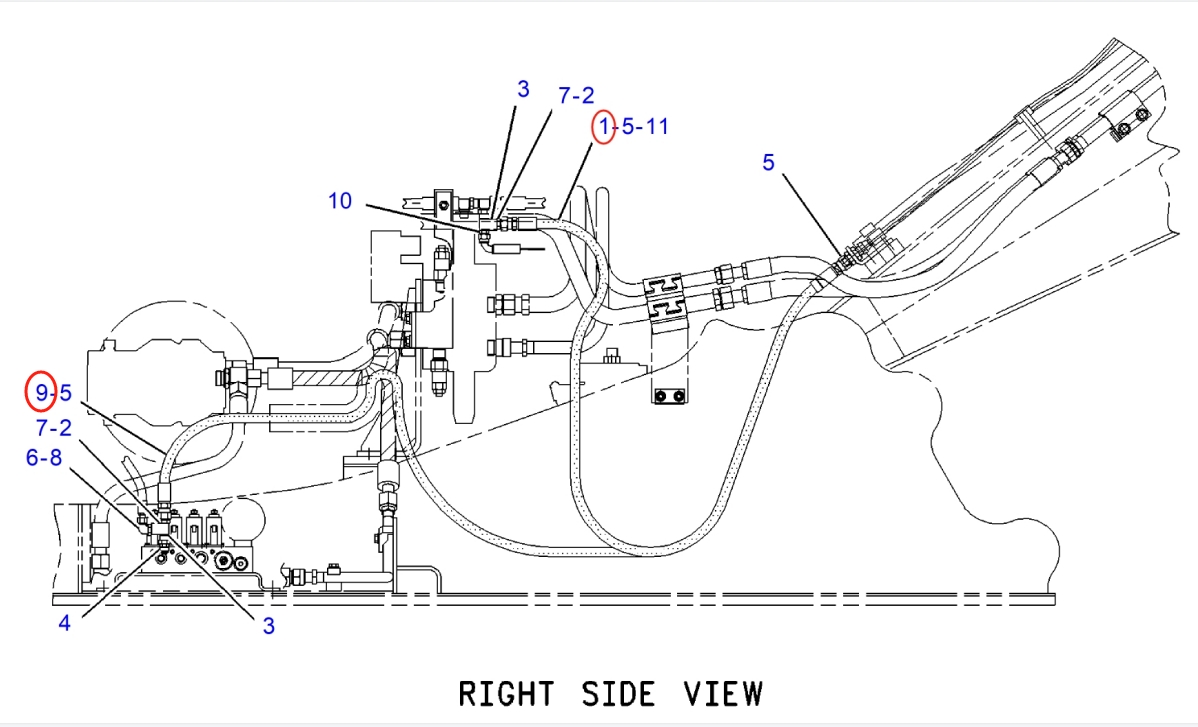

Caterpillar CAT®312B L installation diagram showing hydraulic hose 137-6451 at Pipe No. 1 — **Caterpillar CAT®312B L**Part 137-6451 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 137-6451
Diagram pipe number: 1
Installation route: 大臂(锁止阀)~分配阀前
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 2,100 mm
Working pressure: 15.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

137-4679

Installation route: 小臂油缸锁止阀

Length: 3,500 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

148-3404

Installation route: 小臂油缸锁止阀

Length: 4,400 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

199-5955

Installation route: 小臂油缸锁止阀

Length: 1,665 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

137-4680

Installation route: 小臂油缸锁止阀

Length: 3,200 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

141-6245

Installation route: 右大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 765 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 7

141-6246

Installation route: 右大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 620 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

7T-6625

Installation route: 过渡接头(大臂油缸锁止阀)~分配阀下

Length: 2,200 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

199-5957

Installation route: 小臂油缸锁止阀

Length: 2,110 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
