4I-7608 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B LN · Control Valve

Finished length2,050 mm

Locate this hose

Installation diagram — Pipe No. 26

Locate Pipe No. 26 in the diagram, then confirm part number 4I-7608 before removing the hose.

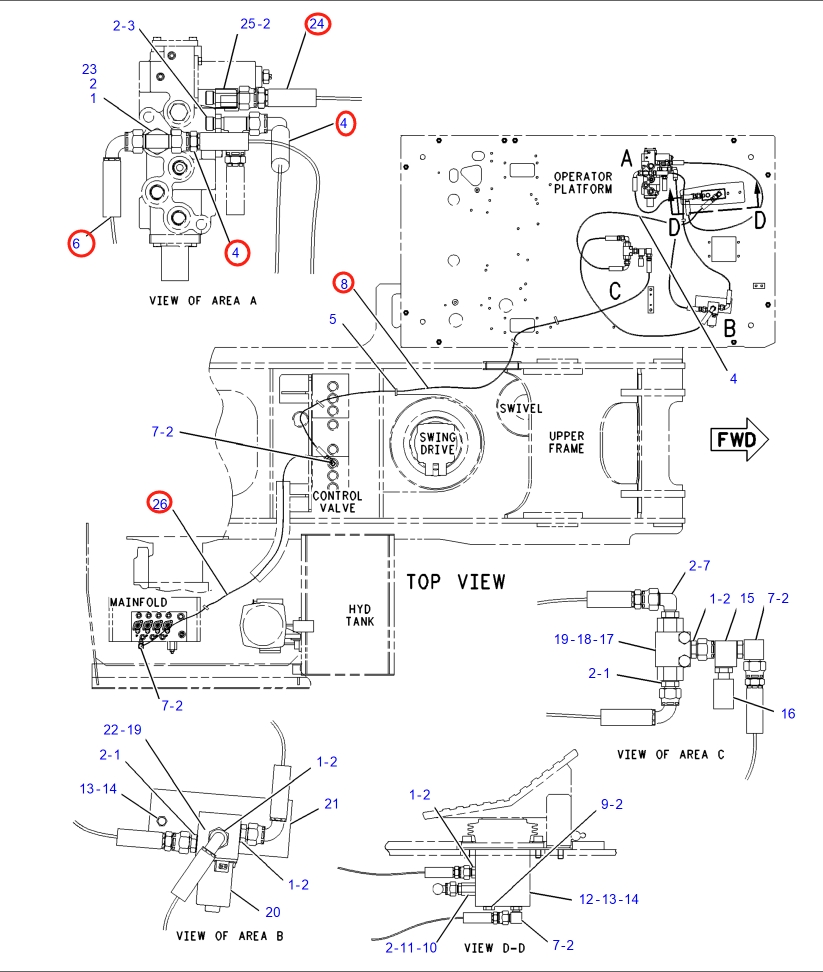

Caterpillar CAT®317B LN installation diagram showing hydraulic hose 4I-7608 at Pipe No. 26
Caterpillar CAT®317B LNPart 4I-7608 · Pipe No. 26Open full-size diagram

Repair specifications

Part number
4I-7608
Diagram pipe number
26
Installation route
分配阀上~
Hose specification
DN10;-6;10.3Mpa
Finished length
2,050 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 8

4I-1452

Installation route: 分配阀上~梭阀(驾驶室)

Length
2,840 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 7

4I-8897

Installation route: 分配阀~回转马达(回油)

Length
883 mm
Specification
DN19;1SN-12;8.7Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 14

142-1040

Installation route: 分配阀~液压油散热器

Length
1,388 mm
Specification
DN25;1SN-16;7Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 7

108-7139

Installation route: 分配阀~阀块(回转马达右)

Length
1,030 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
