Individual hose record
272-4227 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F · Solenoid Valve
Finished length1,450 mm
Locate this hose

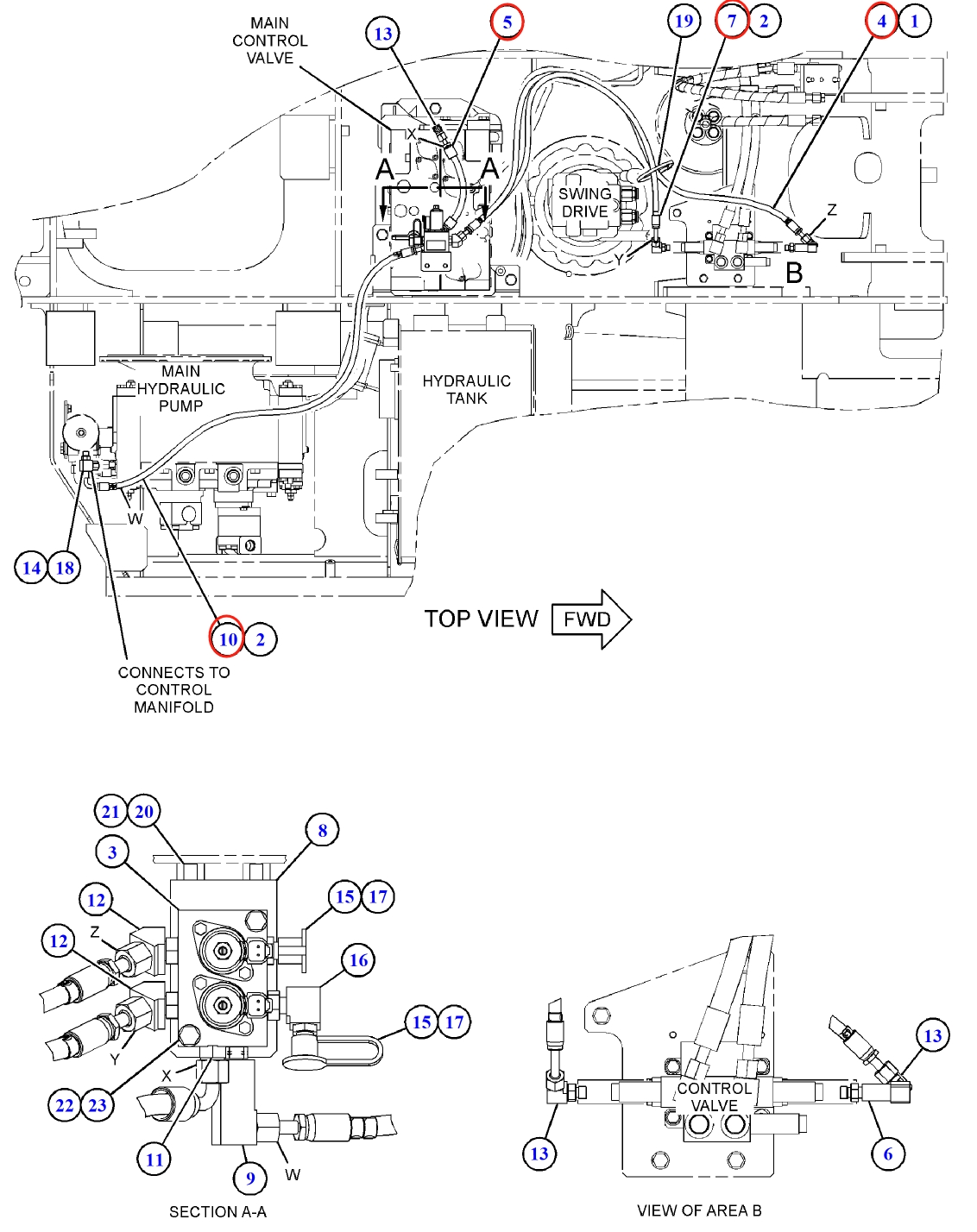

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 272-4227 before removing the hose.
Repair specifications
- Part number
- 272-4227
- Diagram pipe number
- 4
- Installation route
- 电磁阀(分配阀下)~控制阀(回转接头右)
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,450 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
