Individual hose record

221-4807 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Swing Motor

Finished length1,750 mm

Locate this hose

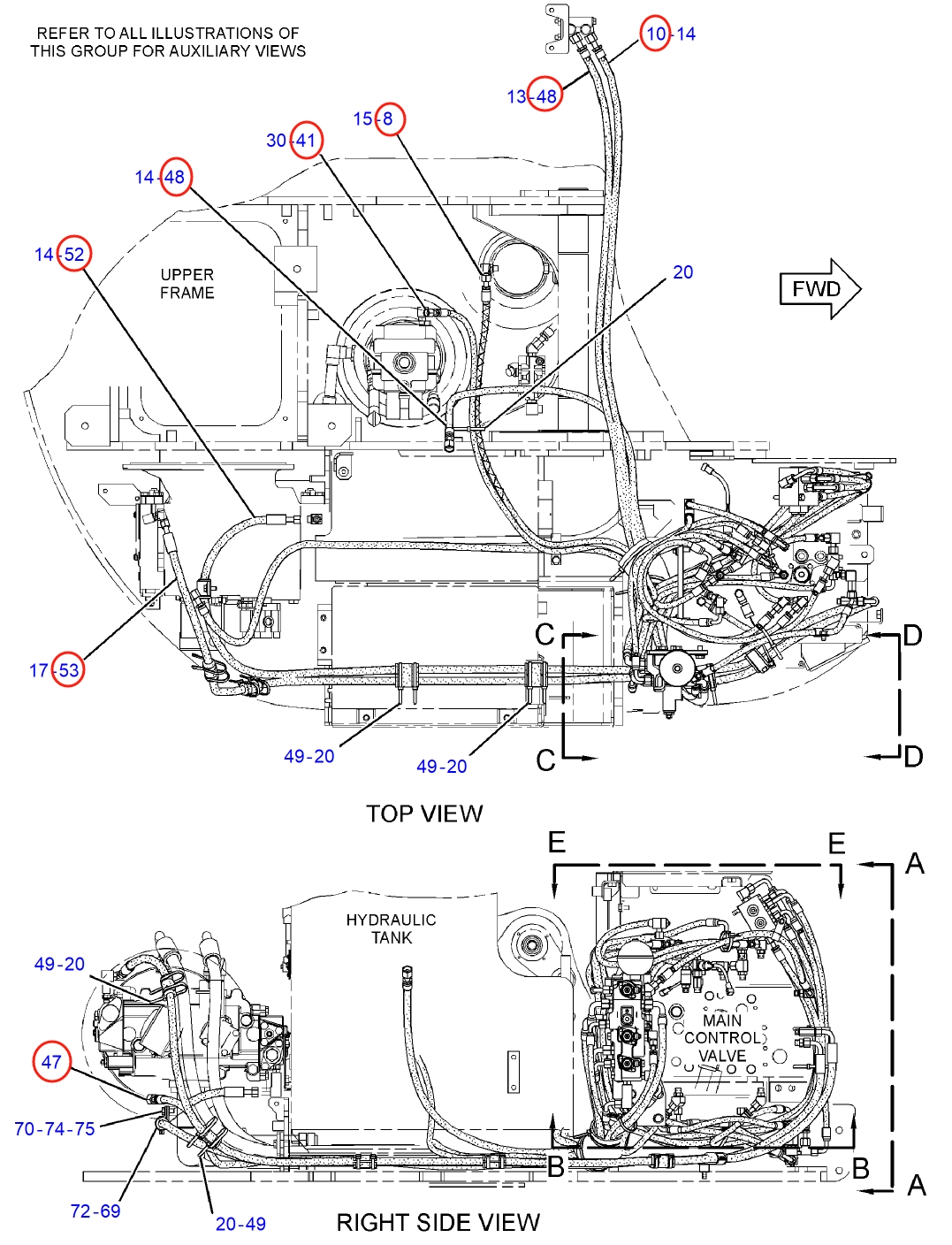

Installation diagram — Pipe No. 41

Locate Pipe No. 41 in the diagram, then confirm part number 221-4807 before removing the hose.

Part number: 221-4807
Diagram pipe number: 41
Installation route: 回转马达~蓄能器电磁阀(液压油箱前)
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,750 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 回转马达~回油铁管

Length: 1,120 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 35

Installation route: 回转马达~蓄能器电磁阀(分配阀右)

Length: 1,750 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: 回转马达~蓄能器电磁阀(分配阀右)

Length: 1,570 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
