Individual hose record

536-4890 Hose Repair Specifications

Excavator · Caterpillar · CAT®318D2 · Swivel Joint

Finished length1,860 mm

Locate this hose

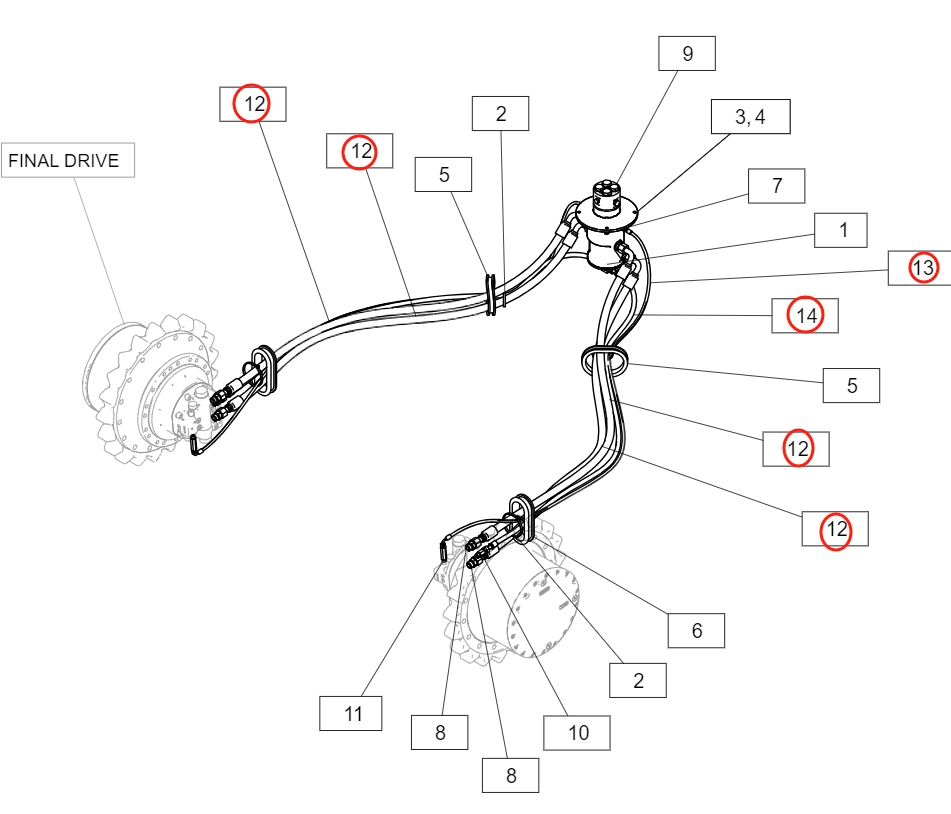

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 536-4890 before removing the hose.

Part number: 536-4890
Diagram pipe number: 14
Installation route: 回转接头~行走马达(规格2)
Hose specification: DN13;-8;10.3Mpa
Finished length: 1,860 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 5

Installation route: 回转接头~行走马达(规格1)

Length: 1,950 mm
Specification: DN13;-8;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 回转接头~行走马达(规格1)

Length: 2,400 mm
Specification: DN6;1SN-4;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
