Individual hose record

4E-5786 Hose Repair Specifications

Excavator · Caterpillar · CAT®312-A · Boom Assembly

Finished length870 mm

Locate this hose

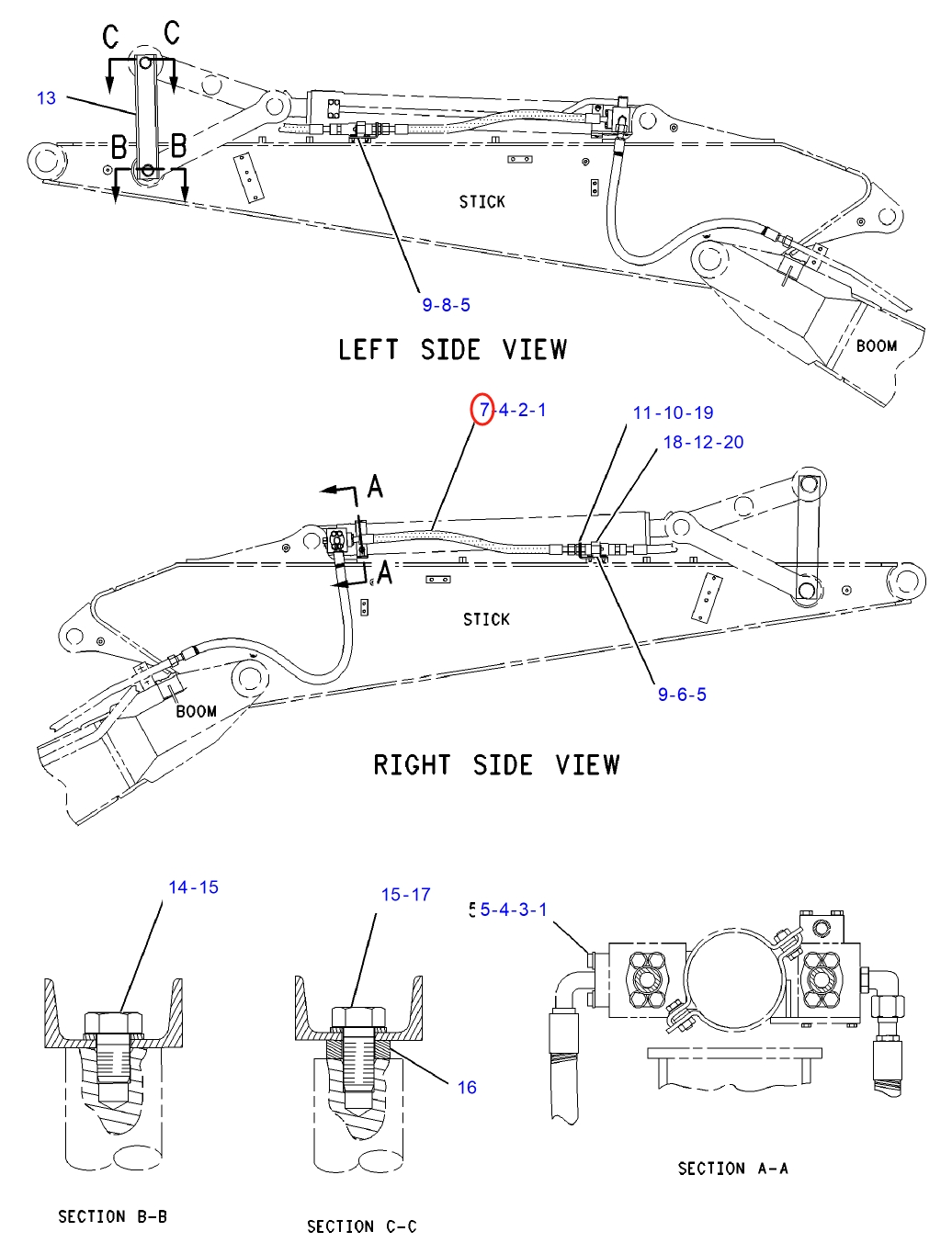

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4E-5786 before removing the hose.

Part number: 4E-5786
Diagram pipe number: 7
Installation route: 铲斗油缸~过渡接头(铲斗油缸旁)
Hose specification: DN19;4SP-12;28Mpa
Finished length: 870 mm
Working pressure: 28 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 11

Installation route: 大臂左3

Length: 910 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 28

Installation route: 大臂左2

Length: 910 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 大臂油缸

Length: 730 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 小臂油缸

Length: 770 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: 大臂左1/左4

Length: 910 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
