Individual hose record
104-8950 Hose Repair Specifications
Excavator · Caterpillar · CAT®312C L · Solenoid Valve
Finished length1,200 mm
Locate this hose

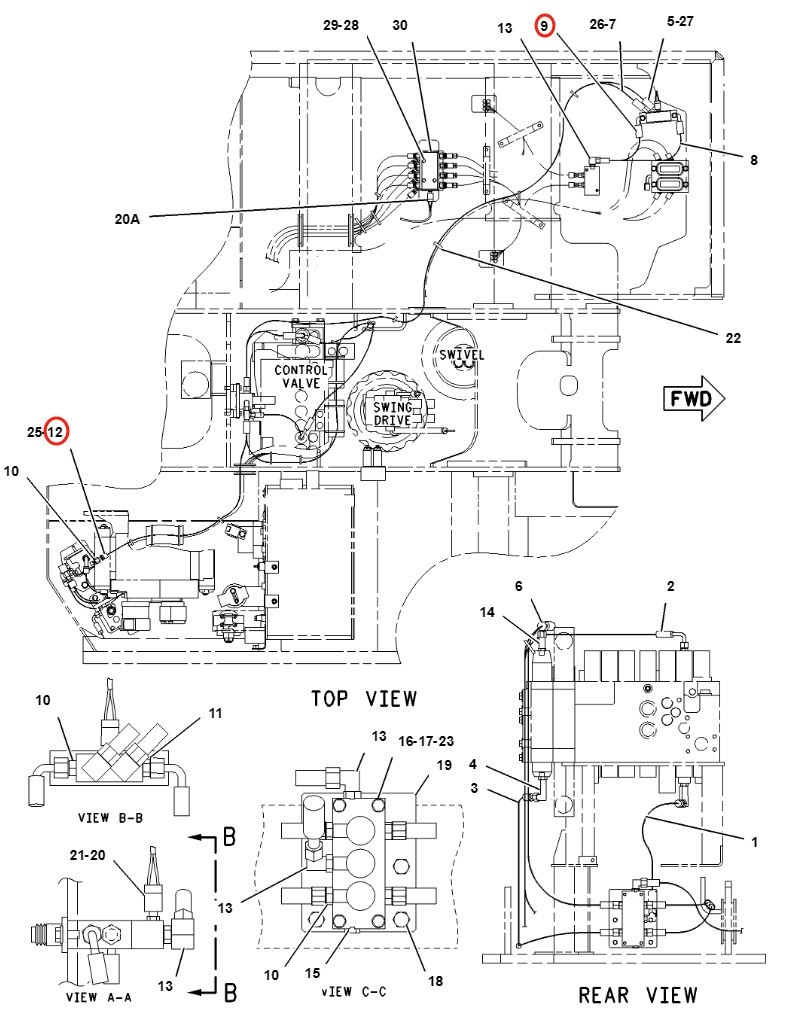

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 104-8950 before removing the hose.
Repair specifications
- Part number
- 104-8950
- Diagram pipe number
- 12
- Installation route
- 电磁阀(液压泵后左)~
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 1,200 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
