Individual hose record

307-5096 Hose Repair Specifications

Excavator · Caterpillar · CAT®314F CR · Swivel Joint

Finished length1,800 mm

Locate this hose

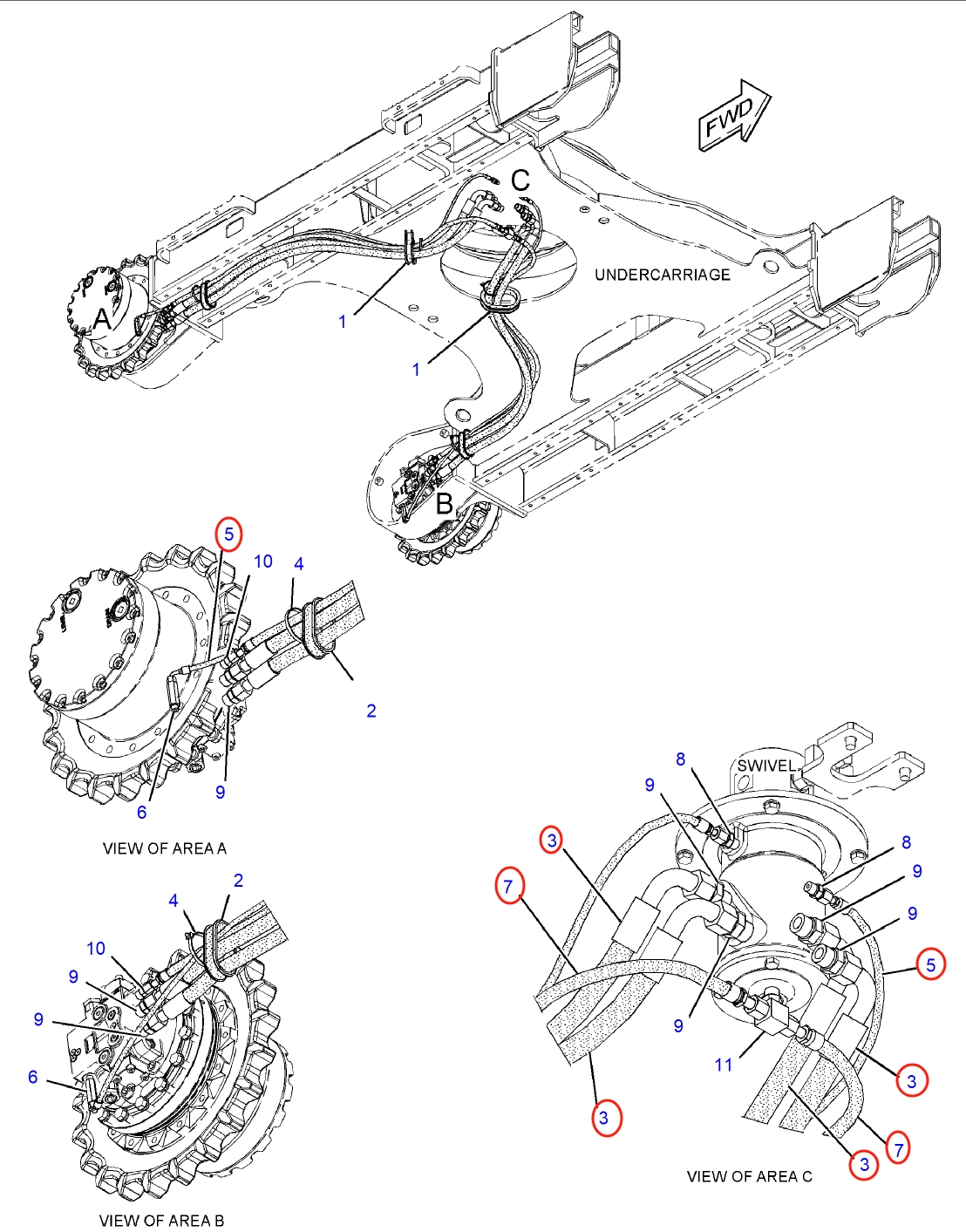

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 307-5096 before removing the hose.

Part number: 307-5096
Diagram pipe number: 7
Installation route: 回转接头~行走马达(规格1)
Hose specification: DN13;-8;10.3Mpa
Finished length: 1,800 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 11

Installation route: 回转接头~电磁阀(回转接头右)

Length: 610 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 回转接头~过渡接头(连接液压油箱)

Length: 950 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 回转接头~行走马达(规格2)

Length: 1,700 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
