Individual hose record

4I-1452 Hose Repair Specifications

Excavator · Caterpillar · CAT®312-A · Attachments

Finished length2,840 mm

Locate this hose

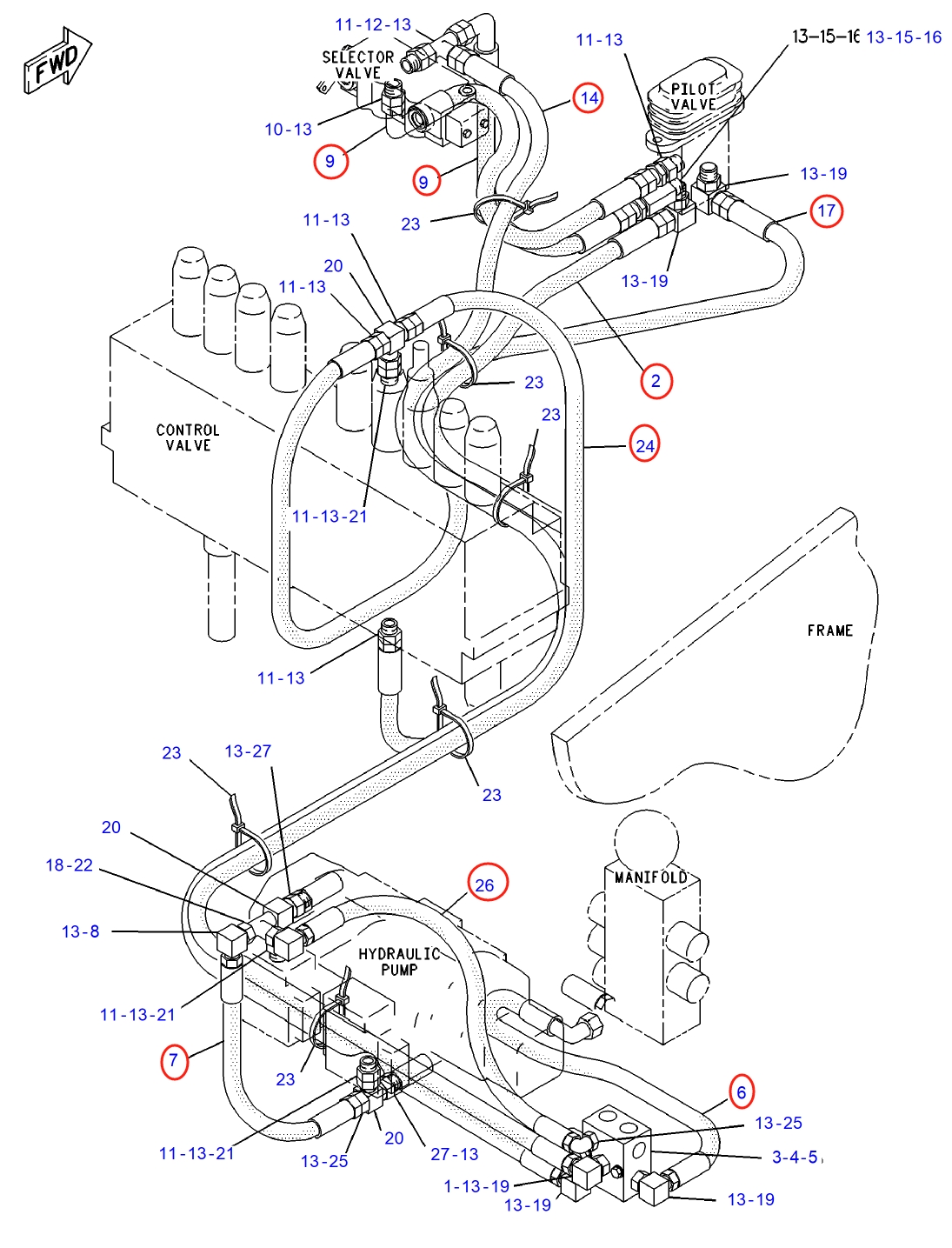

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 4I-1452 before removing the hose.

Caterpillar CAT®312-A installation diagram showing hydraulic hose 4I-1452 at Pipe No. 17 — **Caterpillar CAT®312-A**Part 4I-1452 · Pipe No. 17Open full-size diagram

Repair specifications

Part number: 4I-1452
Diagram pipe number: 17
Installation route: 踏板(附加装置)~分配阀
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,840 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24

7I-7383

Installation route: 大臂~铁管(回转马达右)

Length: 970 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

7I-7383

Installation route: 大臂(附加装置)~过渡接头(回转马达右)

Length: 970 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

4I-1845

Installation route: 先导阀(分配阀左前)~手动阀(分配阀前)

Length: 400 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 3

7I-8385

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,150 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4I-1413

Installation route: 踏板(附加装置)~手动阀(连分配阀)

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

4I-7608

Installation route: 踏板(附加装置)~分配阀下

Length: 2,050 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

129-6498

Installation route: 手动阀(大臂上)~大臂铁管

Length: 1,045 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

7I-7383

Installation route: 大臂(附加装置)~分配阀前

Length: 970 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
