Individual hose record

292-7176 Hose Repair Specifications

Excavator · Caterpillar · CAT®312F · Hydraulic Pump

Finished length960 mm

Locate this hose

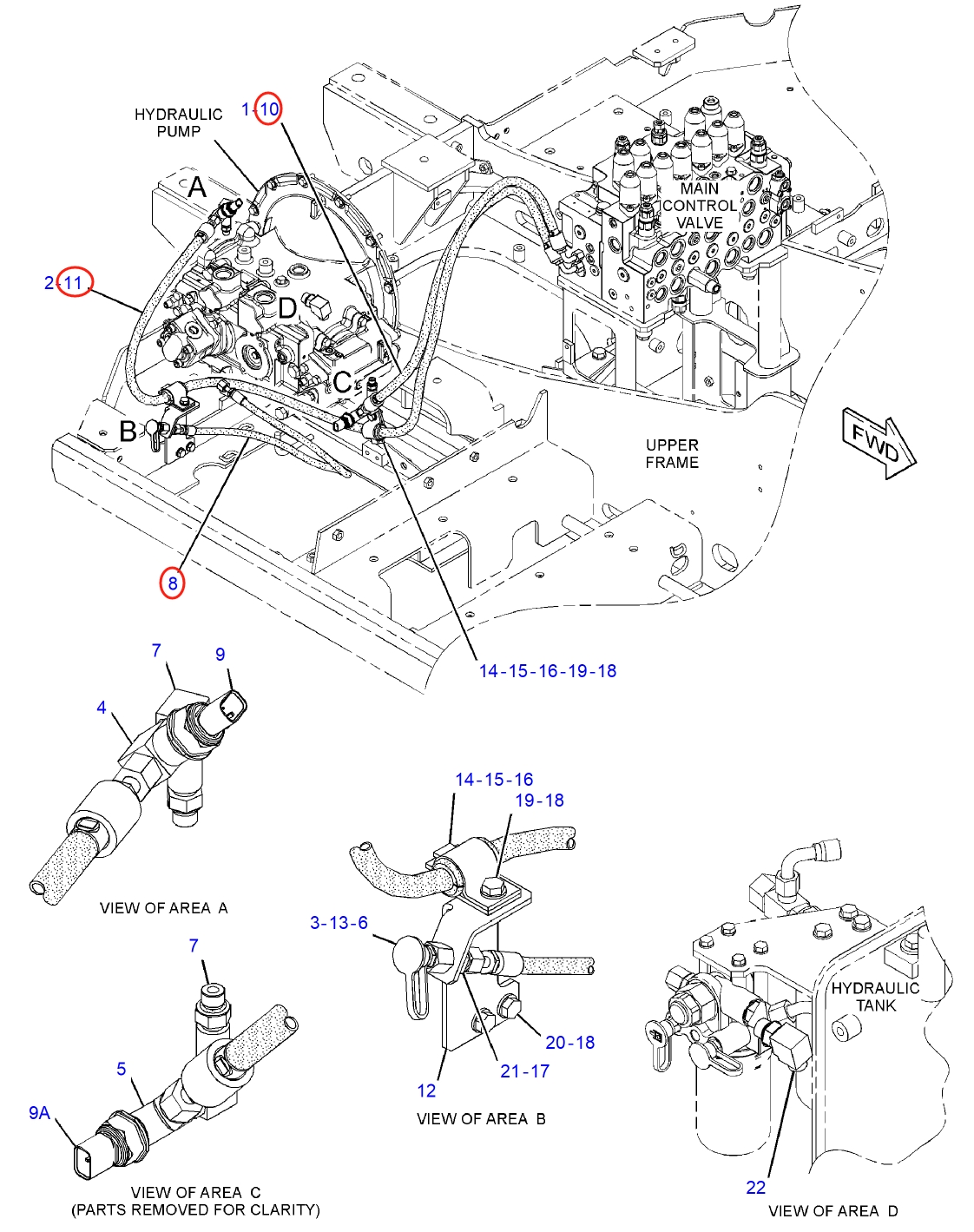

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 292-7176 before removing the hose.

Part number: 292-7176
Diagram pipe number: 8
Installation route: 液压泵~测压接头(液压泵后)
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 960 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: 先导泵~吸油铁管

Length: 640 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 先导泵~液压油过滤器

Length: 450 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
