Individual hose record

275-1538 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Control Lever

Finished length520 mm

Locate this hose

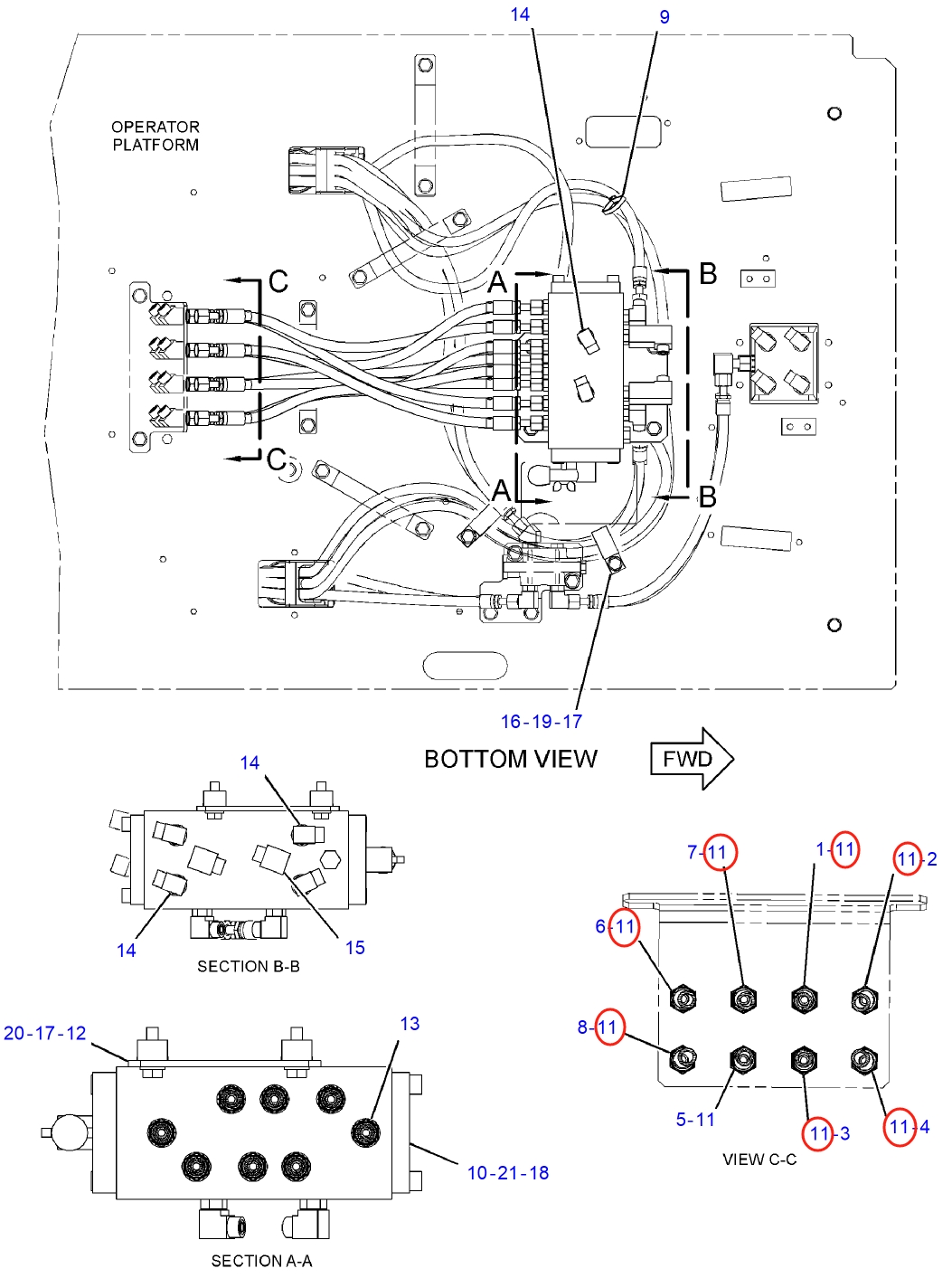

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 275-1538 before removing the hose.

Part number: 275-1538
Diagram pipe number: 11
Installation route: 中转接头~先导阀(驾驶室)
Hose specification: DN10;-6;10.3Mpa
Finished length: 520 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 8

Same system

Diagram Pipe No. 15

Installation route: 中转接头~分配阀下

Length: 2,100 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 中转接头~分配阀下

Length: 2,200 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
