Individual hose record
107-1457 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Boom Assembly
Finished length570 mm
Locate this hose

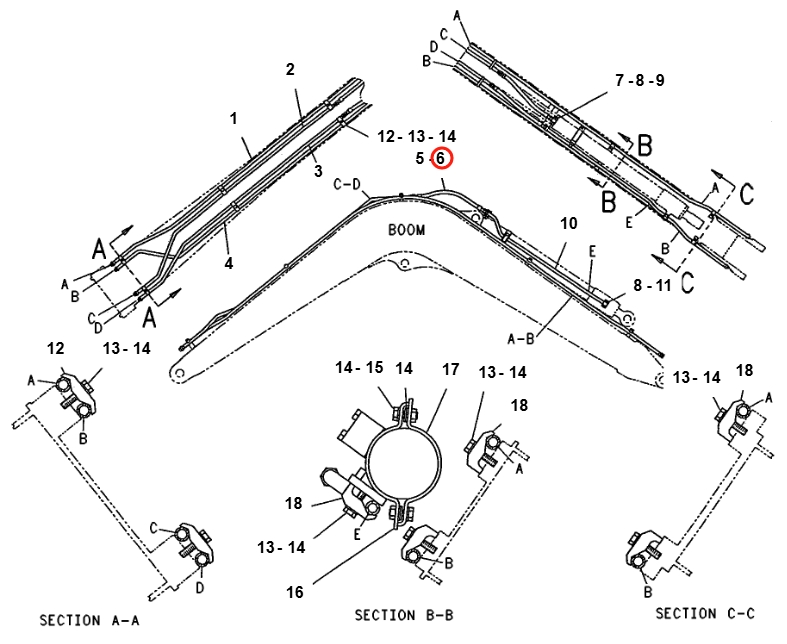

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 107-1457 before removing the hose.
Repair specifications
- Part number
- 107-1457
- Diagram pipe number
- 6
- Installation route
- 小臂油缸
- Hose specification
- DN13;4SP-8;28Mpa
- Finished length
- 570 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
