Machine hose information
Caterpillar CAT®349D L hydraulic hose manuals and diagrams
Use these manuals and diagrams to identify the machine section before checking individual repair dimensions.
Open machine manualOpens the complete PDF from this site in a new tab.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
- Equipment type
- Excavator
- Brand
- Caterpillar
- Model
- CAT®349D L
- Information available
- Model matched to machine manuals
- Related manuals
- 1
- Manufacturer manuals
- 1
- Hose specification manuals
- 0
Machine literature
Related manuals

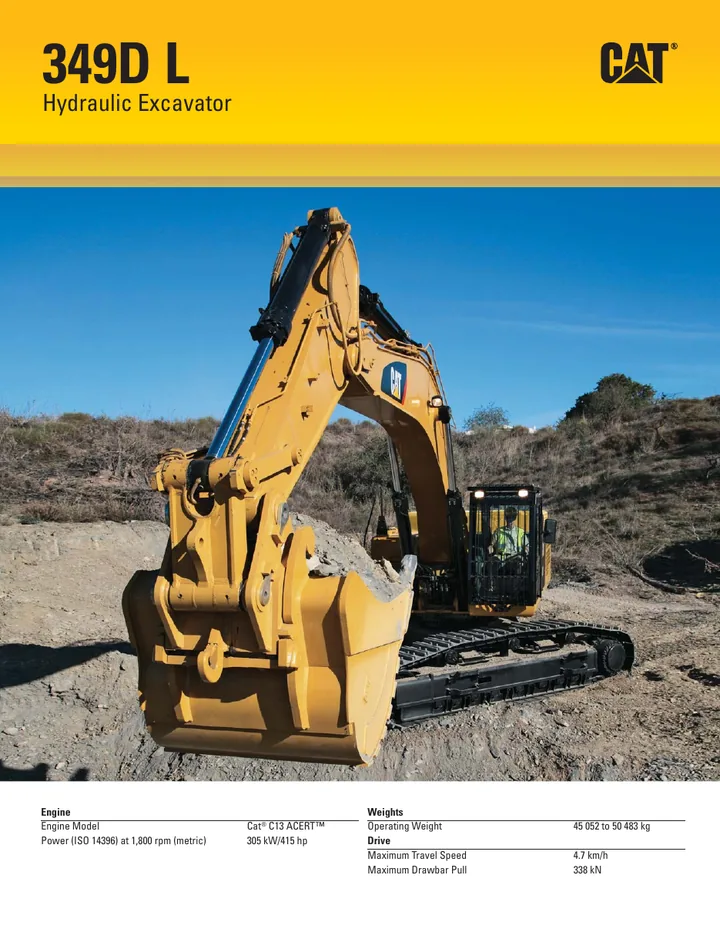

caterpillar-349d-l-product-brochure-c674813
- Manual coverage
- Model specifications
- Pages
- 28

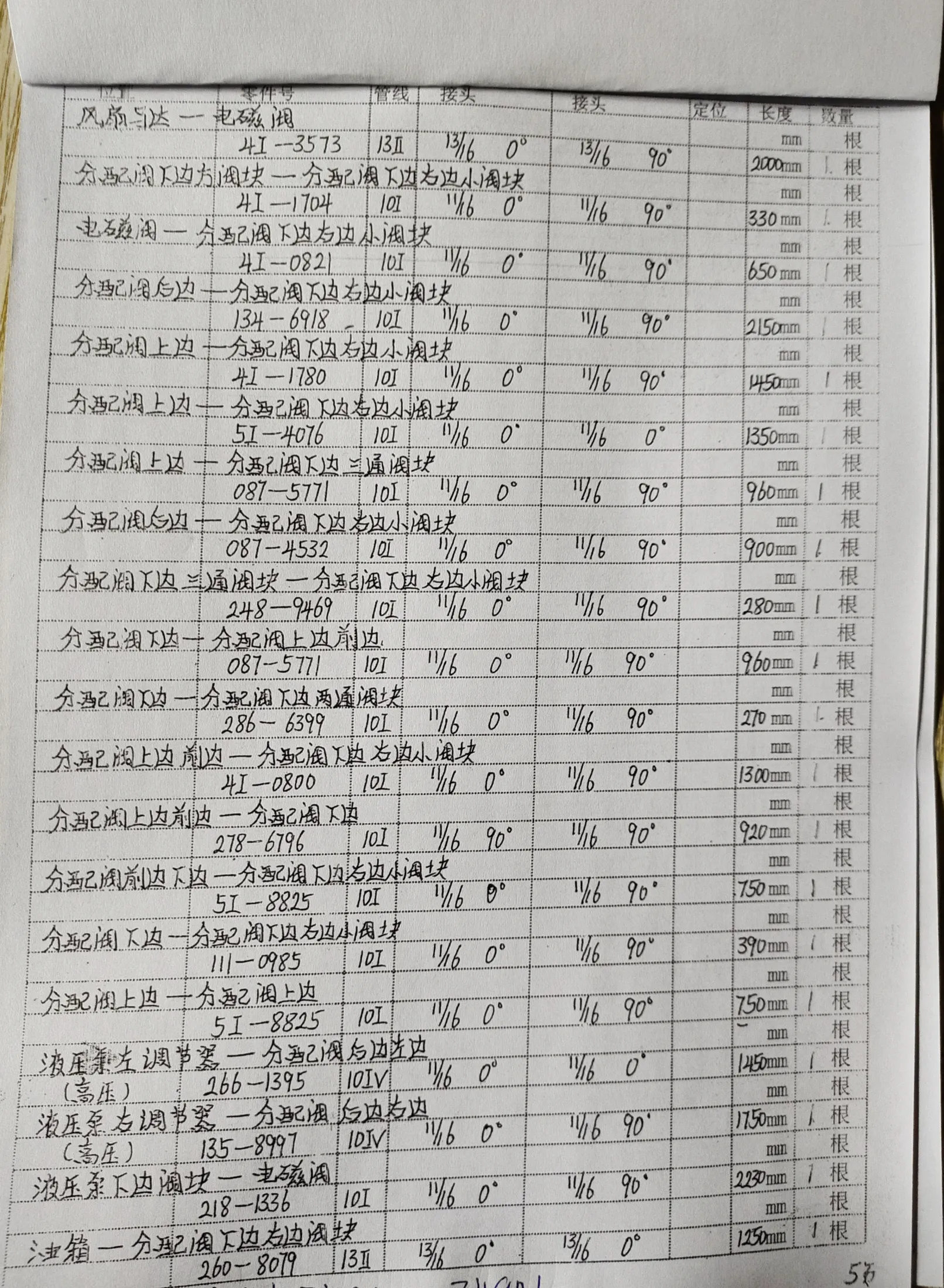

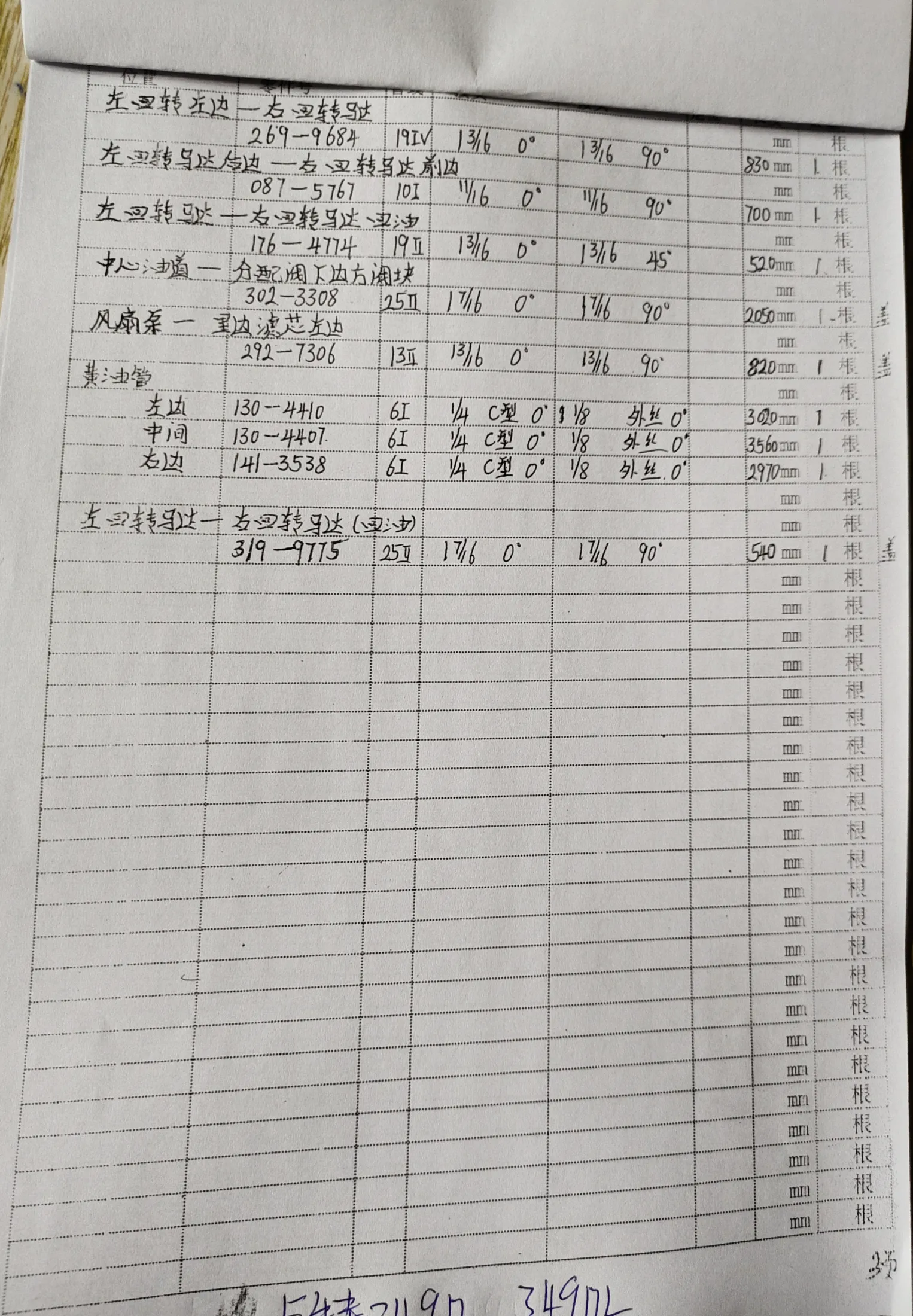

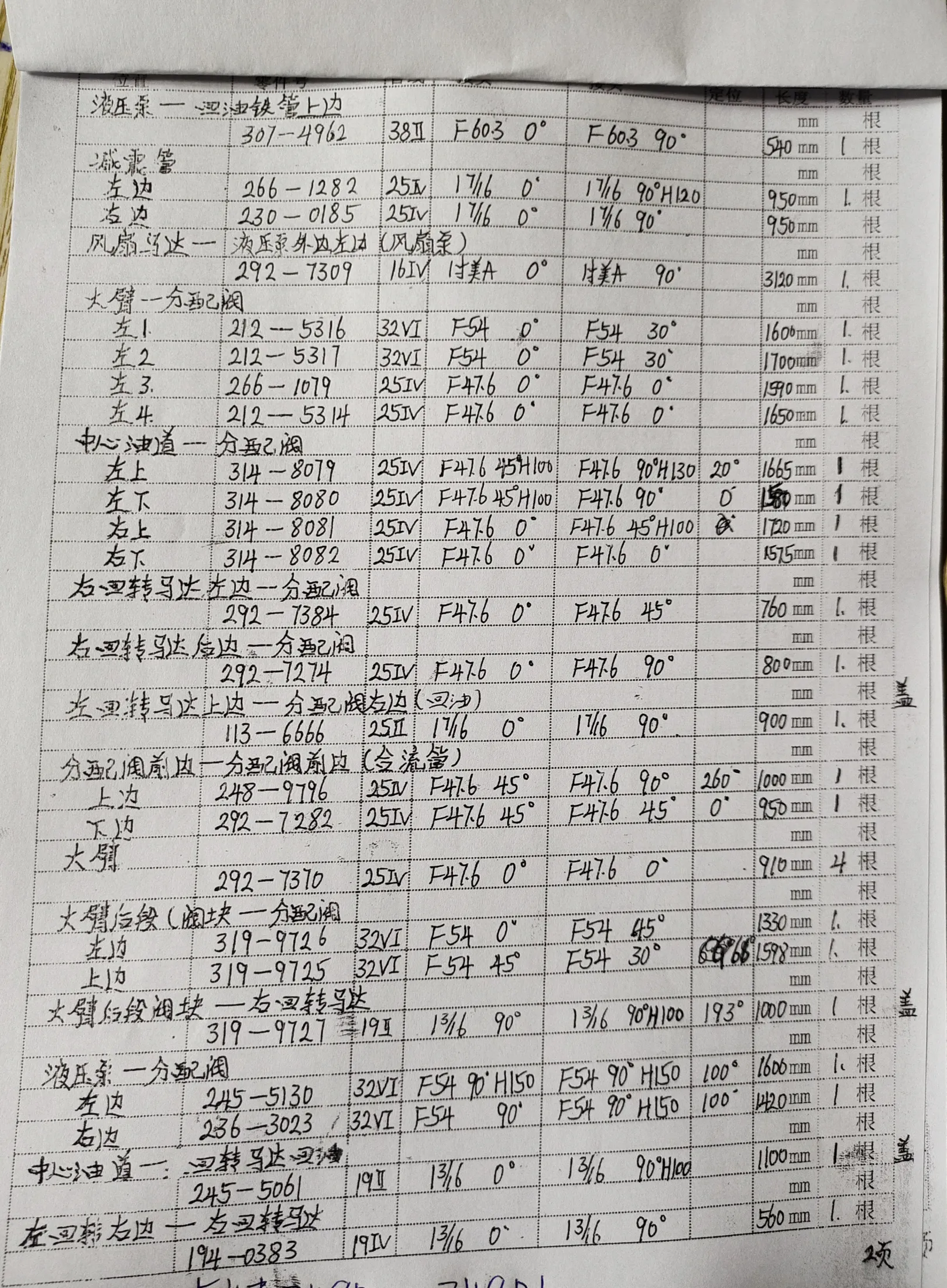

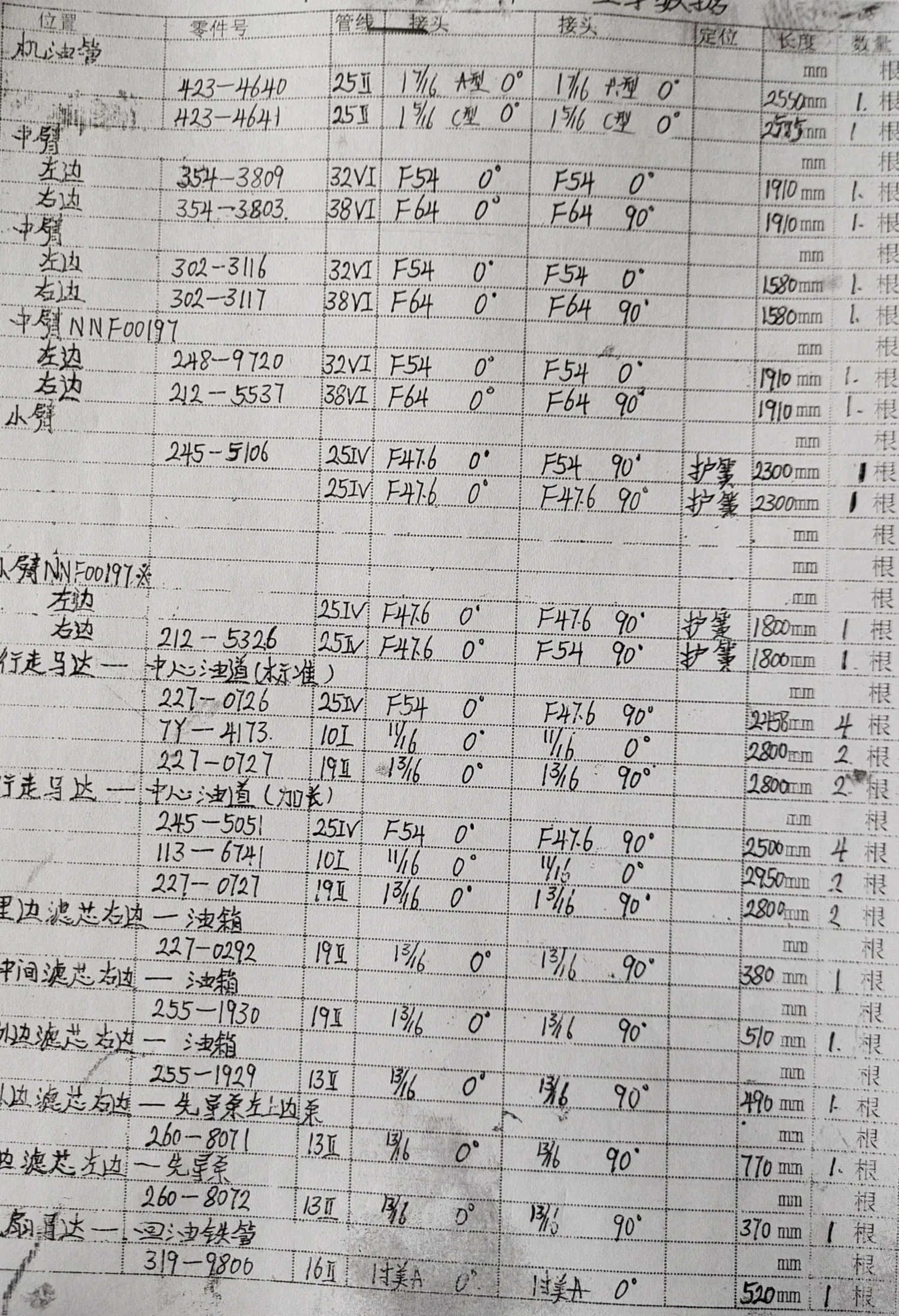

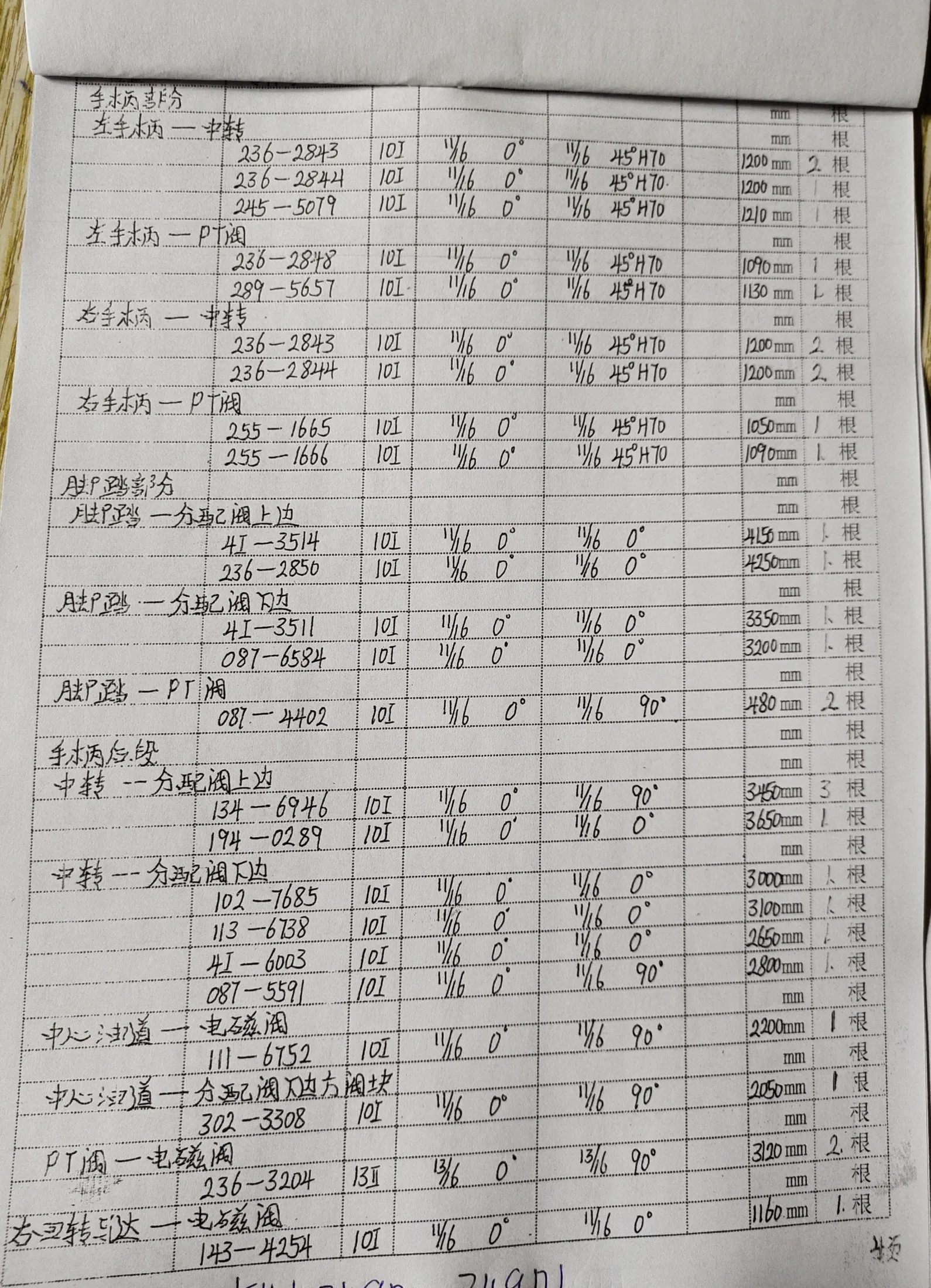

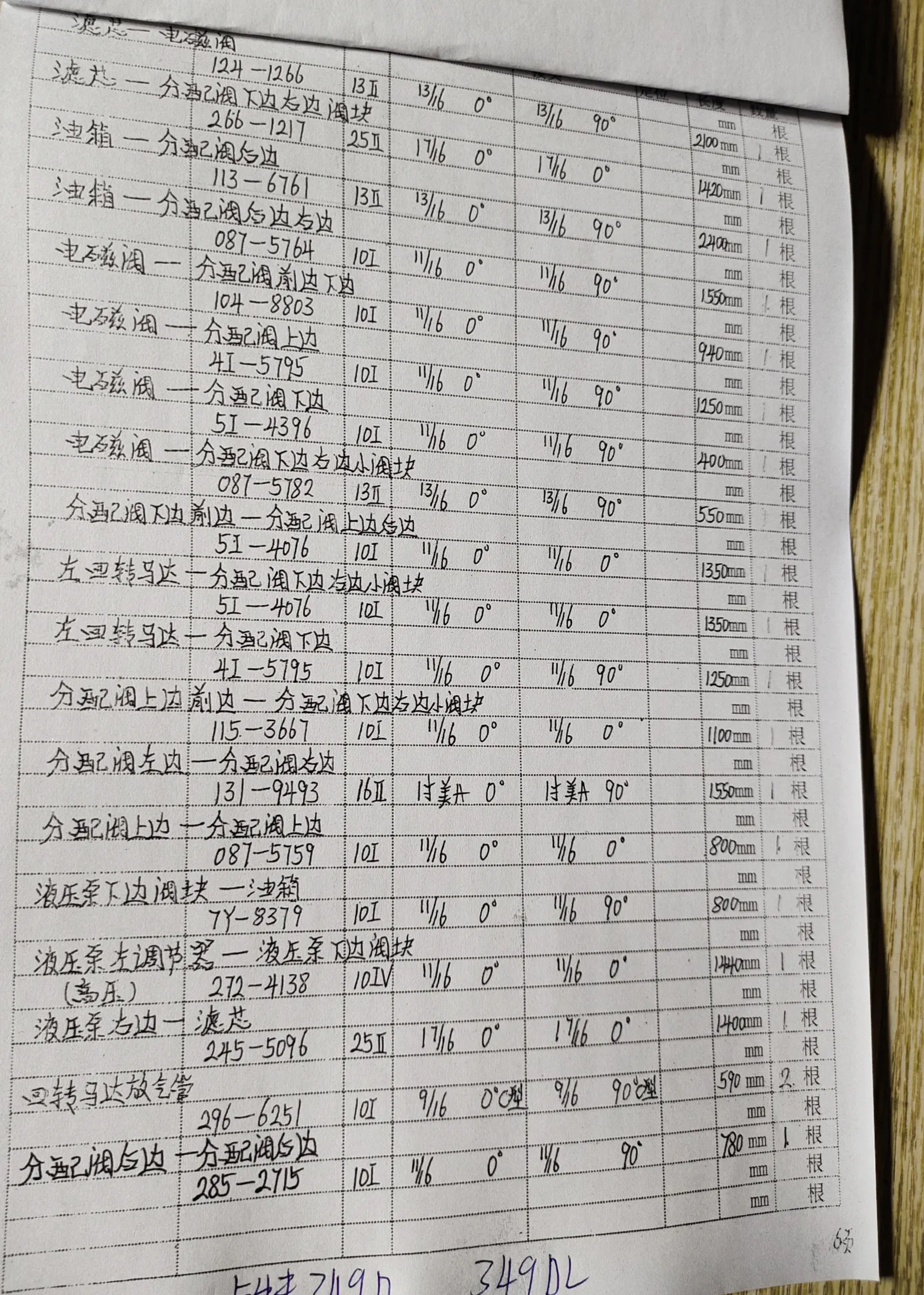

Technician notes
Workshop measurements
These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.
